Clipsal - 56 Series RCD Protected Switched Socket Outlet 500V, 20A, 4 Round PIN, IP66, 30mA | Grey

Item Number: 56C420RC-GY

Grey 1 PCE 0

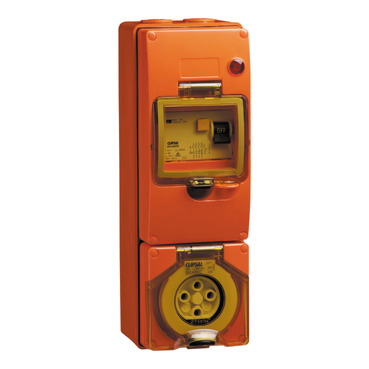

Chemical Resistant Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width101 mm

Height294 mm

Depth110 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554276942	GY
5	CRT	19311554592971	GY
1	PCE	9311554276959	RO
5	CAR	19311554592964	RO

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	socket-outlet with residual current device
Device application	power supply
Market segment	industry small commercial utility

Physical

Number of poles	4
Control type	push-button
Number of power socket outlets	1 protective cover
[in] rated current	20 A
[ue] rated operational voltage	500 V AC 50 Hz
Number of gangs	3 gangs
Installation direction	vertical
Device mounting	surface
Connections - terminals	screw terminals cable(s) 1.5-16 mm²
Depth	110 mm
Width	101 mm
Height	294 mm
Net weight	1.6 kg
Ambient air temperature for operation	-25...75 °C
Ip degree of protection	IP66
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Network number of phases	3 phases
Targeted country	Australia
Earth-leakage protection class	class A
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11 cm
Package 1 width	10.5 cm
Package 1 length	30.5 cm
Package 1 weight	1614 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	11.35 cm
Package 2 width	10.35 cm
Package 2 length	30.25 cm
Package 2 weight	8.07 kg
Total lifecycle carbon footprint	35 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	15.992463858284092
Carbon footprint of the manufacturing phase [a1 to a3]	16 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.373140779663136
Carbon footprint of the distribution phase [a4]	0.4 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.22476940031426748
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.93097502582249
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.549167333194889
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	35.07051639727888
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
