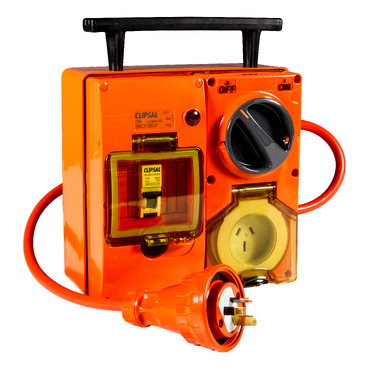

Clipsal - 56 Series RCD Protected Portable Socket Outlet 250V, 15A, 3 Flat PIN, IP66 | Chemical Resistant Orange
Item Number: 56C315ELP-RO
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket-outlet with residual current device |
| Device application | power supply |
| Market segment |
|
Physical
| Number of poles | 3 |
|---|---|
| Control type | push-button |
| Number of power socket outlets | 1 protective cover |
| [in] rated current | 15 A |
| [ue] rated operational voltage | 250 V AC 50 Hz |
| Number of gangs | 4 gangs |
| Installation direction | vertical |
| Depth | 105 mm |
| Width | 195 mm |
| Height | 243 mm |
| Net weight | 2.64 kg |
| Ambient air temperature for operation | -25...75 °C |
| Ip degree of protection | IP66 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2511024EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC + PET |
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-

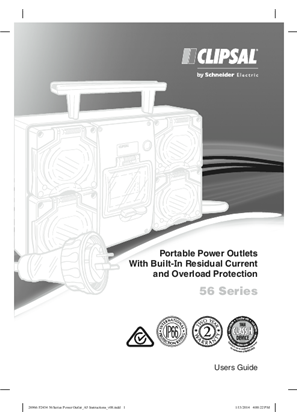

Operating Manuals
-
Specification Guide
-

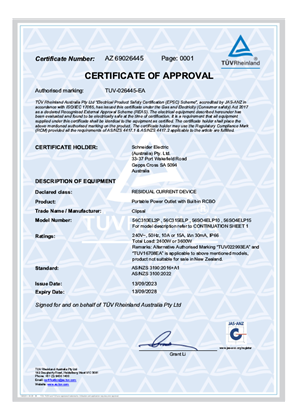

Certificates (MSDS)
-
