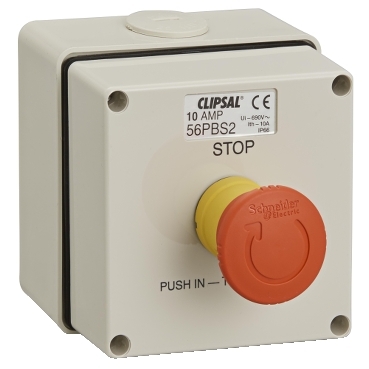

Clipsal - 56 Series push-button Control Station 3A, Latching | Grey

Item Number: 56PBS2-GY

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth102 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: grey

Market segment

  • utility
  • industry
  • small commercial

Physical

[in] rated current

10 A

Control type

push-button

Connections - terminals

screw terminal cable(s) 1-4 mm² solid

Width

101 mm

Height

107 mm

Depth

102 mm

Net weight

0.36 kg

Marking

STOP

Ip degree of protection

IP66

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66 conforming to AS 60529

Standards

  • AS/NZS 3100
  • AS/NZS 3133

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120809EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

[us] rated supply voltage

lamp: 500 V AC 50 Hz

Poles description

1P

Suitability for isolation

no

Tightening torque

0.8 N.m

Cap/operator or lens colour

red

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.4 cm

Package 1 width

10.4 cm

Package 1 length

10.6 cm

Package 1 weight

358.0 g

Total lifecycle carbon footprint

4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.9141716430147453

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.1073423284658471

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.06571219348979766

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.5698666666666666

Carbon footprint of the use phase [b2, b3, b4, b6]

0.6 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.8775783729472447

Carbon footprint of the end-of-life phase [c1 to c4]

0.9 kg CO2 eq.

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

3.5346712045843014

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
