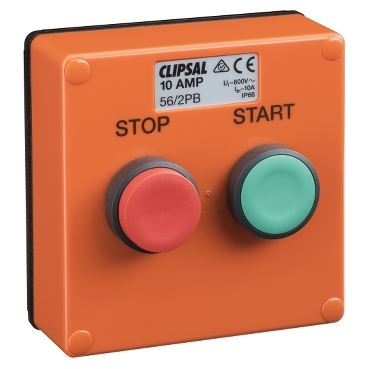

Clipsal - 56 Series push-button Control Station 10A, Start/Stop, Less Enclosure | Grey

Item Number: 56/2PBLE-GY

Grey 1 PCE 0
Chemical Resistant Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Widthopening: 101 mm

Heightopening: 107 mm

Depthopening : 80 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554235475	GY
24	CAR	19311554194915	GY
1	PCE	9311554235482	RO
24	CAR	19311554194922	RO

Specifications

Design

Range of product	Series 56
Product brand	Clipsal

Physical

[in] rated current	3 A
Width	opening: 101 mm
Height	opening: 107 mm
Depth	opening : 80 mm
Marking	START-STOP
Ip degree of protection	IP66
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
[us] rated supply voltage	lamp: 240 V AC
Cap/operator or lens colour	red/green
Number of command positions	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.7 cm
Package 1 width	10.0 cm
Package 1 length	10.7 cm
Package 1 weight	194.2 g
Unit type of package 2	CAR
Number of units in package 2	24
Package 2 height	21.0 cm
Package 2 width	34.8 cm
Package 2 length	44.5 cm
Package 2 weight	5.592 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.0383579136130265
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0582287156091271
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.03564611166401873
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1.1397333333333333
Carbon footprint of the use phase [b2, b3, b4, b6]	1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.476049497280321
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.7480155714998267
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
