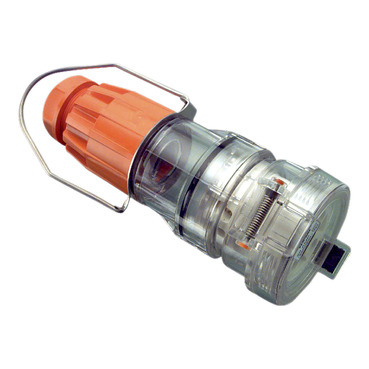

Clipsal - 56 Series Pendant Outlet IP66, 500V 50A - 5 Round Pins | Electric Orange

Item Number: 56PO550-EO

Electric Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width90 mm

Height90 mm

Depth263 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554237783	EO
20	CAR	19311554116252	EO

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	pendant outlet
Device application	power supply
Market segment	industry small commercial utility

Physical

Mounting mode	external mounting
Mounting support	pendant
[in] rated current	50 A
[ue] rated operational voltage	500 V AC 50 Hz conforming to EN 60309-2
Connections - terminals	screw terminals 2.5-25 mm²
Socket number	1
Outlet standard	industrial
Cable outer diameter	9...29 mm
Cable entry	cable gland
Net weight	0.56 kg
Depth	263 mm
Width	90 mm
Height	90 mm
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Standards	AS/NZS 3120
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1210020EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate: housing
Contacts material	sleeves: brass

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Weee label	N/A
Warranty duration(in months) bmecat	18
	Outside of Europe
Plug, socket category	low voltage
Plug, socket, control station shape	straight
Poles description	3P + N + E
Voltage colour	black
Duration	7 h
Socket-outlet type	U
Thread type	M40
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9 cm
Package 1 width	9 cm
Package 1 length	26.3 cm
Package 1 weight	0.001 g
Sustainable packaging	No
End of life manual availability	N/A
Warranty (in months)	18
