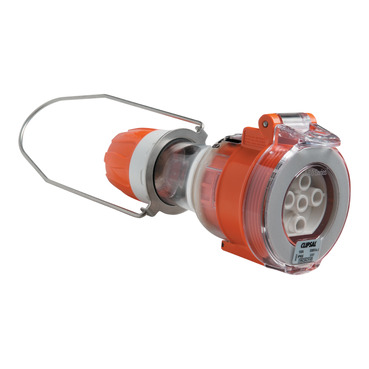

Clipsal - 56 Series Pendant Outlet IP66, 500V 20A - 5 Round Pins | Electric Orange
Item Number: 56PO520-EO
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | pendant outlet |
| Device application | power supply |
| Market segment |
|
Physical
| Mounting mode | external mounting |
|---|---|
| Mounting support | pendant |
| [in] rated current | 20 A |
| [ue] rated operational voltage | 500 V AC 50 Hz conforming to EN 60309-2 |
| Connections - terminals | screw terminals 1-6 mm² |
| Socket number | 1 |
| Outlet standard | industrial |
| Cable outer diameter | 7...16 mm |
| Cable entry | cable gland |
| Net weight | 0.36 kg |
| Depth | 209 mm |
| Width | 90 mm |
| Height | 90 mm |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Standards | AS/NZS 3120 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2511024EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: housing |
|---|---|
| Contacts material | sleeves: brass |
