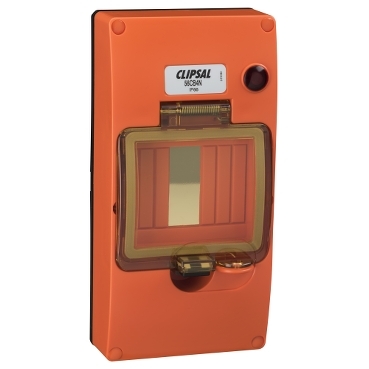

Clipsal - 56 Series Mounting Cover Kit 4 Module, with 240/415V Neon | Chemical Resistant Orange

Item Number: 56CB4N-RO

Chemical Resistant Grey 1 PCE 0

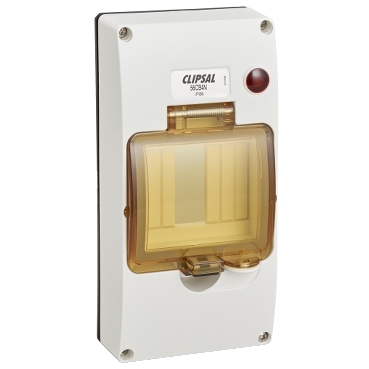

Chemical Resistant White 1 PCE 0

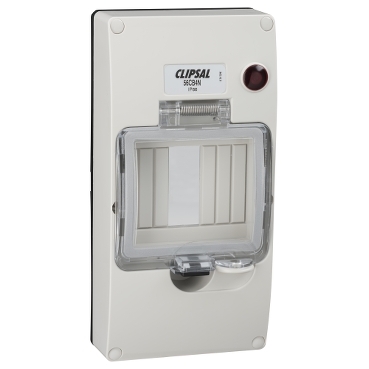

Grey 1 PCE 0
Chemical Resistant Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width95 mm

Height190 mm

Depth50 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554641108	CG
12	CAR	19311554641105	CG
1	PCE	9311554641085	GY
12	CAR	19311554641082	GY
1	PCE	9311554641092	RO
12	CAR	19311554641099	RO
1	PCE	9311554641115	RW
12	CAR	19311554641112	RW

Specifications

Design

Range	Clipsal - 56 Series
Range of product	Series 56
Product brand	Clipsal
Product or component type	DIN cover
Colour	chemical grey

Physical

Device mounting	surface
Mounting mode	wall-mounted
Width	95 mm
Height	190 mm
Depth	50 mm
Net weight	0.33 kg
Standards	AS 3100
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511029EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	ABS (acrylonitrile butadiene-styrene): housing

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
	Outside of Europe
Average percentage of recycled plastic content	0 %
Compatibility code	56 Series covers
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.4 cm
Package 1 width	10.1 cm
Package 1 length	20.1 cm
Package 1 weight	306.0 g
Unit type of package 2	CAR
Number of units in package 2	14
Package 2 height	39.5 cm
Package 2 width	10.2 cm
Package 2 length	31.0 cm
Package 2 weight	4.284 kg
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.6398154190578575
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.043977007959727324
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.06270948335325435
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.4007331367058578
Carbon footprint of the use phase [b2, b3, b4, b6]	0.4 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.19654164387543008
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.343776690952127
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
