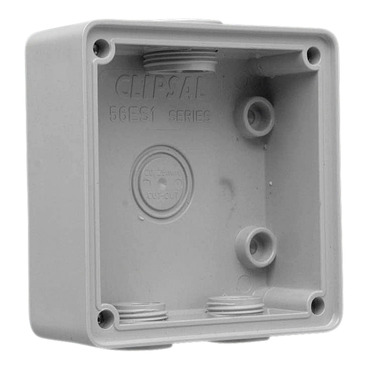

Clipsal - 56 Series, Mounting Back Box, Shallow, 1 Gang, 38x101x101mm

Home ProductsIndustrial56 SeriesMounting Back Box, Shallow, 1 Gang, 38x101x101mm

Clipsal - 56 Series, Mounting Back Box, Shallow, 1 Gang, 38x101x101mm CG

Item Number: 56ES1-CG

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Colour

dark grey

Physical

Number of gangs

1 gang

Device mounting

surface

Mounting mode

wall-mounted

Length

38 mm

Width

102 mm

Depth

40 mm

Height

102 mm

Net weight

0.78 kg

Ip degree of protection

IP66 conforming to AS 60529

Standards

AS 3100

Ambient air temperature for operation

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Material

Material

PVC (polyvinyl chloride): housing

Others

Commercial status history

SESA301466 | Wed Sep 27 02:54:00 EDT 2023 | From Import Local | From 14 to 19

Package 1 bare product quantity

1

Cable entry number

2

Number of mounting holes

4

Compatibility code

56 Series covers

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.8 cm

Package 1 width

10.15 cm

Package 1 length

10.15 cm

Package 1 weight

180 g

Unit type of package 2

BB1

Number of units in package 2

2

Package 2 height

10.1 cm

Package 2 width

10.6 cm

Package 2 length

10.5 cm

Package 2 weight

0.394 kg

Unit type of package 3

CAR

Number of units in package 3

48

Package 3 height

21 cm

Package 3 width

34.8 cm

Package 3 length

44.5 cm

Package 3 weight

9.9 kg
