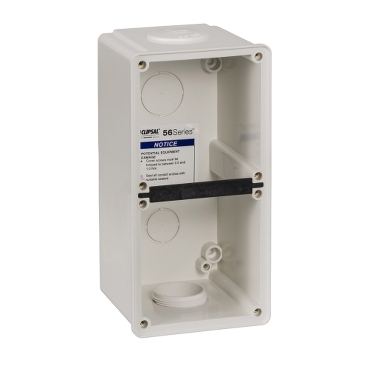

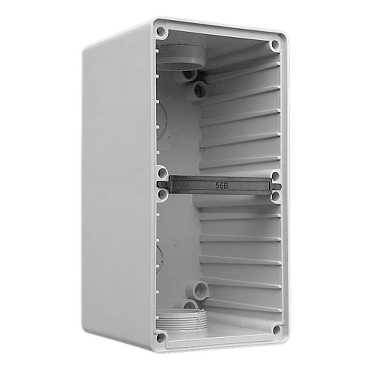

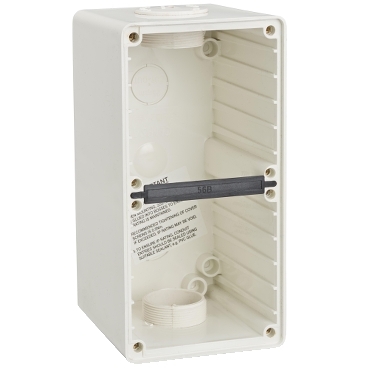

Clipsal - 56 Series, Mounting Back Box, Deep, 2 Gang, 100x101x198mm

Clipsal - 56 Series, Mounting Back Box, Deep, 2 Gang, 100x101x198mm Resistant Orange

Item Number: 56ED2-RO

Datasheet

Product Dimensions

Width icon

Width102 mm

Height icon

Height198 mm

Depth icon

Depth100 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

enclosure

Colour

grey (RAL 7035)

Physical

Number of gangs

2 gangs

Device mounting

surface

Mounting mode

wall-mounted

Length

100 mm

Width

102 mm

Depth

100 mm

Height

198 mm

Net weight

0.567 kg

Ip degree of protection

IP66 conforming to AS 60529

Standards

AS 3100

Ambient air temperature for operation

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PVC (polyvinyl chloride): housing

Others

Package 1 bare product quantity

1

Shape

rectangular

Cable entry number

2

Number of mounting holes

8

Compatibility code

56 Series covers

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.2 cm

Package 1 width

10.8 cm

Package 1 length

20.4 cm

Package 1 weight

590.0 g
Show all specifications
