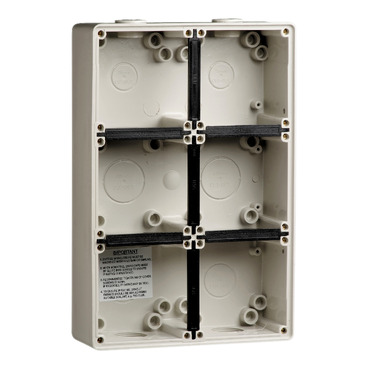

Clipsal - 56 Series, Mounting Back Box, 6 Gang

Clipsal - 56 Series, Mounting Back Box, 6 Gang CG

Item Number: 56E6-CG

Datasheet

Product Dimensions

Width icon

Width198 mm

Height icon

Height296 mm

Depth icon

Depth63 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Colour

grey (RAL 7035)

Physical

Number of gangs

6 gangs

Device mounting

surface

Mounting mode

wall-mounted

Length

63 mm

Width

198 mm

Depth

63 mm

Height

296 mm

Net weight

0.745 kg

Ip degree of protection

IP66 conforming to AS 60529

Standards

AS 3100

Ambient air temperature for operation

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Material

Material

PVC (polyvinyl chloride): housing

Others

Package 1 bare product quantity

1

Cable entry number

4

Number of mounting holes

24

Compatibility code

56 Series covers

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.8 cm

Package 1 width

20.2 cm

Package 1 length

30.2 cm

Package 1 weight

980.0 g

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications
