Specifications
Design
| Range | Clipsal - 56 Series |
|---|---|
| Range of product | Series 56 |
| Product brand | Clipsal |

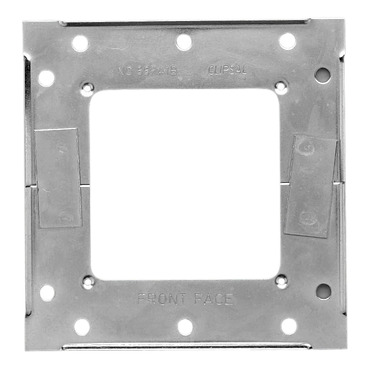

| Product or component type | cover frame |
Physical
| Mounting position | horizontal and vertical |
|---|---|
| Device mounting | surface |
| Mounting mode | wall-mounted |
| Type of installation | indoor |
| Width | 141 mm |
| Height | 141 mm |
| Net weight | 0.134 kg |
| Ambient air temperature for operation | -25...75 °C |
| Reach free of svhc | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | metal |
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-
Specification Guide
-
Declaration of Conformity (Sustainability)
ZIP
Installation Instructions - F1821/04 - 56 Series, Use of Caps and Sealant for full IP66 Applications, 22957
VERSION
1.0
DATE
02 Nov 2023
REVISION
1.0
DOWNLOAD (ZIP) 65.2 KB
ZIP
Installation Instructions - F062/04 - 56FA Series Flush Surrounds, 19602
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 95 KB
