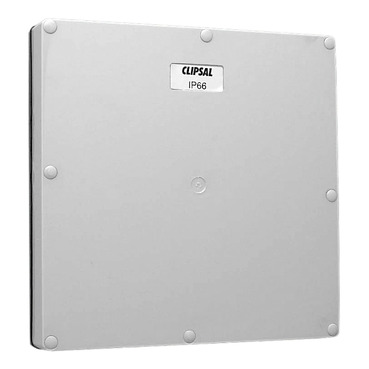

Clipsal - 56 Series Lid 4 Gang, Made of Plastic & Includes Gasket, | Grey
Item Number: 56L4-GY
Specifications
Design
| Range | Clipsal - 56 Series |
|---|---|
| Range of product | Series 56 |
| Product brand | Clipsal |
| Product or component type | enclosure lid |
| Colour | grey (RAL 7035) |
Physical
| Device mounting | surface |
|---|---|
| Mounting mode | wall-mounted |
| Width | 192 mm |
| Height | 192 mm |
| Depth | 28 mm |
| Net weight | 0.38 kg |
| Standards | AS 3100 |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2511029_V1-EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Material | polycarbonate: housing |
|---|
