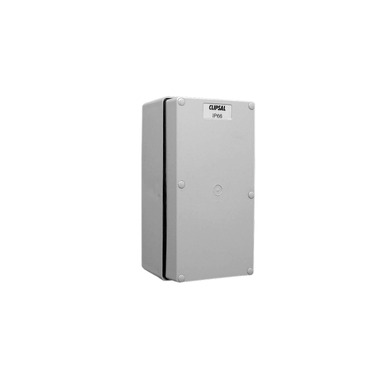

Clipsal - 56 Series Junction Box IP66, 2 Gang (101 x 198 x 91mm high) | Grey
Item Number: 56JB2-GY
Specifications
Design
| Range | Clipsal - 56 Series |
|---|---|
| Range of product | Series 56 |
| Product brand | Clipsal |
| Product or component type | junction box |
| Device application | installation |
Physical
| Device mounting | surface |
|---|---|
| Mounting mode | wall-mounted |
| Depth | 91 mm |
| Width | 101 mm |
| Height | 198 mm |
| Net weight | 0.7 kg |
| Standards | AS 3100 |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2511029EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: housing |
|---|
