Clipsal - 56 Series, Junction Box, 1 Gang, 20mm I.D, 3 Way Entry, SWA Cable

Home ProductsIndustrial56 SeriesJunction Box, 1 Gang, 20mm I.D, 3 Way Entry, SWA Cable

Clipsal - 56 Series, Junction Box, 1 Gang, 20mm I.D, 3 Way Entry, SWA Cable GY

Item Number: 56JB1SWA-GY

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal - 56 Series

Range of product

Series 56

Product brand

Clipsal

Product or component type

junction box

Device application

installation

Physical

Device mounting

surface

Mounting mode

wall-mounted

Depth

91 mm

Width

101 mm

Height

101 mm

Net weight

0.6 kg

Standards

AS 3100

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate: housing

Others

Package 1 bare product quantity

1

Shape

rectangular

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.6 cm

Package 1 width

10.4 cm

Package 1 length

11.2 cm

Package 1 weight

582.0 g

Unit type of package 2

CAR

Number of units in package 2

12

Package 2 height

25.0 cm

Package 2 width

21.4 cm

Package 2 length

33.8 cm

Package 2 weight

7.2 kg
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

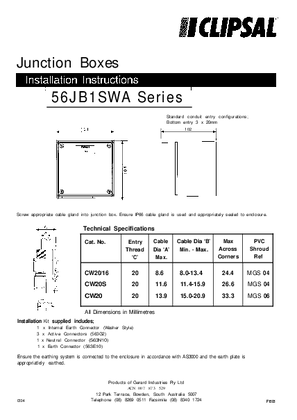

  • Installation Instruction

  • Specification Guide
