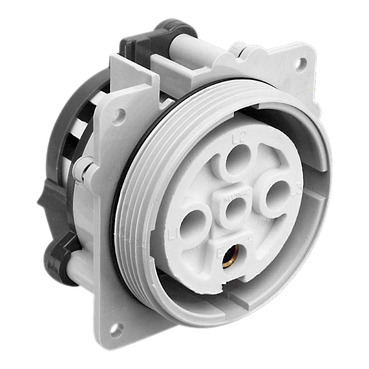

Clipsal - 56 Series Internal Socket Housings 500V 50A ,5 Round Pins

Home ProductsIndustrial56 SeriesInternal Socket Housings

Clipsal - 56 Series Internal Socket Housings 500V 50A ,5 Round Pins

Item Number: 56SO550G

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

  • industry
  • utility
  • small commercial

Physical

Device mounting

surface

[in] rated current

50 A

[ue] rated operational voltage

500 V AC 50 Hz conforming to EN 60309-2

Connections - terminals

screw terminals 10-16 mm² rigid or stranded cable

Socket number

1

Outlet standard

industrial

Net weight

0.001 kg

Ambient air temperature for operation

-25...75 °C

Standards

AS/NZS 3112

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate: cover

Contacts material

screws: brass

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Outlet standard deviation

Australian/New Zealand

Plug, socket category

low voltage

Poles description

3P + N + E

Voltage colour

black

Duration

7 h

Tightening torque

0.8 N.m

Socket-outlet type

U

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.001 kg

Sustainable packaging

No

Warranty (in months)

18
Show all specifications
