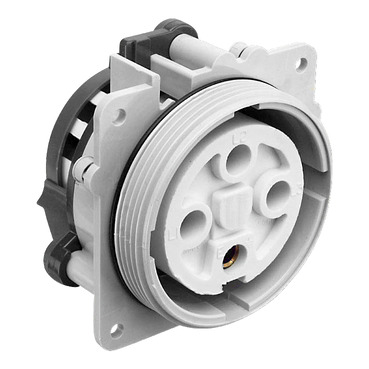

Clipsal - 56 Series Internal Socket Housings 500V, 50A, 4 Round Pin
Item Number: 56SO450G
Datasheet
Close
Specifications
Design
Range of product
Series 56
Product brand
Clipsal
Physical
Device mounting
surface
Mounting mode
external mounting
[in] rated current
50 A
[ue] rated operational voltage
500 V 50/60 Hz conforming to EN 60309-2
Socket number
1
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PVC (polyvinyl chloride)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Weee label
N/A
Outside of Europe
Voltage colour
black
Duration
7 h
Socket-outlet type
P
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.001 kg
Sustainable packaging
No
Warranty (in months)
18
