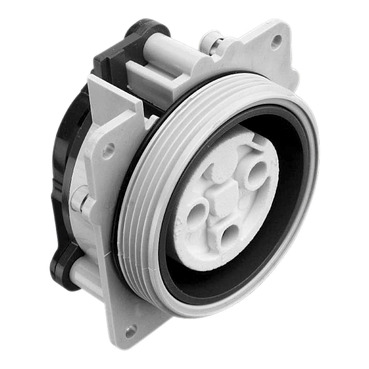

Clipsal - 56 Series, Internal Socket Housings, 250V, 20A, 3 Round Pin
Item Number: 56SO320G
Datasheet
Close
Specifications
Design
Range of product
Series 56
Range
Clipsal - 56 Series
Product brand
Clipsal
Product or component type
socket-outlet
Device application
power supply
Market segment
small commercial|industry|utility
Physical
Device mounting
surface
[in] rated current
20 A
[ue] rated operational voltage
250 V AC 50 Hz conforming to EN 60309-2
Connections - terminals
screw terminals 2.5-6 mm² rigid or stranded cable
Socket number
1
Outlet standard
industrial
Net weight
0.207 kg
Ambient air temperature for operation
-25...75 °C
Standards
AS/NZS 3112
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
polycarbonate: cover
Contacts material
screws: brass
Others
Package 1 bare product quantity
1
Outlet standard deviation
Australian/New Zealand
Plug, socket category
low voltage
Poles description
1P + N + E
Voltage colour
blue
Tightening torque
0.8 N.m
Socket-outlet type
H
Service life in hours
9 h
Targeted country
Australia
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.207 kg
