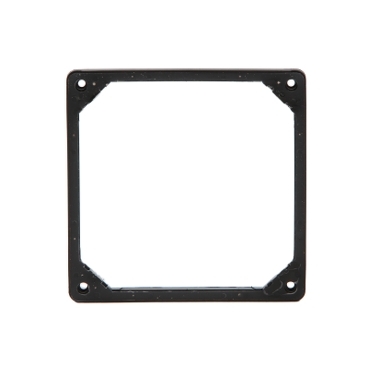

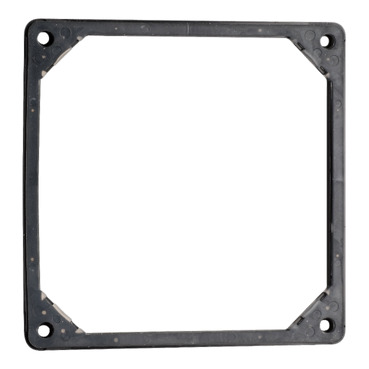

Clipsal - 56 Series Gasket Kit 1 Gang, Temperature Range -25C to +75C

Home ProductsIndustrial56 SeriesGasket Kit

Clipsal - 56 Series Gasket Kit 1 Gang, Temperature Range -25C to +75C

Item Number: 56G1

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

gasket kit

Colour tint

black

Physical

Range compatibility

56 Series enclosure

Number of gangs

1 gang

Width

96 mm

Height

96 mm

Fixing center

84 x 84 mm

Quantity per set

set of 20

Type of packing

plastic bag and carton

Net weight

0.024 kg

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66 conforming to AS 60529

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

TPE (thermoplastic elastomer)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Accessory / separate part category

sealing accessory

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.024 kg

Sustainable packaging

No

Warranty (in months)

18
Show all specifications
