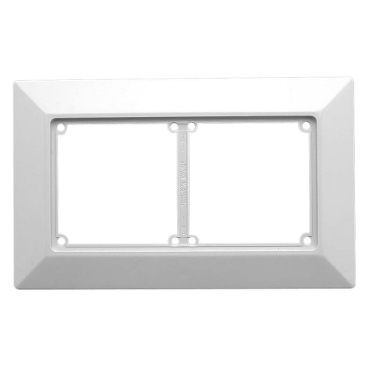

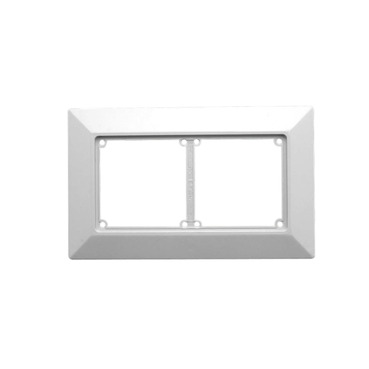

Clipsal - 56 Series Flush Surround 2 Gang | Grey

Item Number: 56FA2-GY

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width254 mm

Height icon

Height157 mm

Depth icon

Depth13 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Clipsal - 56 Series

Range of product

Series 56

Product brand

Clipsal

Product or component type

cover frame

Colour code

RAL 7035

Physical

Mounting position

horizontal and vertical

Device mounting

surface

Mounting mode

wall-mounted

Type of installation

indoor

Depth

13 mm

Length

157 mm

Width

254 mm

Height

157 mm

Net weight

0.212 kg

Ambient air temperature for operation

-25...75 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

polycarbonate: housing

Material

PVC (polyvinyl chloride)

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

16.2 cm

Package 1 length

25.5 cm

Package 1 weight

196 g

Sustainable packaging

No

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Specification Guide

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Clipsal Lifesavers in Electrical Protection - 22498
ZIP

Clipsal Lifesavers in Electrical Protection - 22498

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.4 MB
56 Series Performance in Power, 20139
ZIP

56 Series Performance in Power, 20139

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 375.2 KB
Revit Pack 56 Series
ZIP

Revit Pack 56 Series

VERSION

1.0

DATE

11 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.8 MB
56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today’s industry, 25510
ZIP

56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today’s industry, 25510

VERSION

2.0

DATE

08 May 2023

REVISION

2.0

DOWNLOAD (ZIP) 7 MB
Installation Instructions - F1821/04 - 56 Series, Use of Caps and Sealant for full IP66 Applications, 22957
ZIP

Installation Instructions - F1821/04 - 56 Series, Use of Caps and Sealant for full IP66 Applications, 22957

VERSION

1.0

DATE

02 Nov 2023

REVISION

1.0

DOWNLOAD (ZIP) 65.2 KB
Installation Instructions - F062/04 - 56FA Series Flush Surrounds, 19602
ZIP

Installation Instructions - F062/04 - 56FA Series Flush Surrounds, 19602

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 95 KB

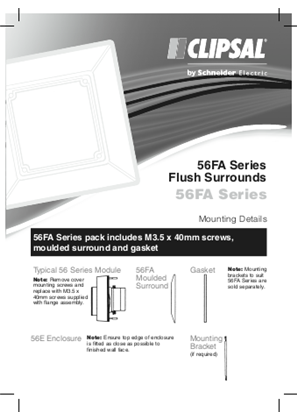

Installation Instructions - F062/03 - 56FA Series Flush Surrounds, 21084
