Clipsal - 56 Series DOL Motor Starter 4kW, 415V, 2 push-button

Home ProductsIndustrial56 SeriesDOL Motor Starter

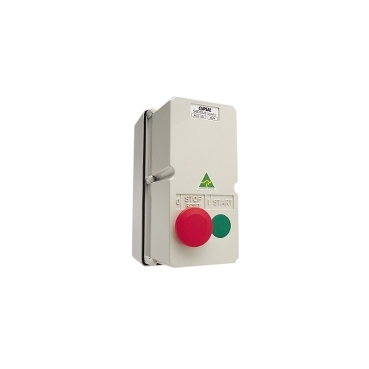

Clipsal - 56 Series DOL Motor Starter 4kW, 415V, 2 push-button | Grey

Item Number: 56DOL9/1-GY

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Product or component type

switch

Colour

cover: grey

Product destination

2 push-button

Market segment

  • utility
  • industry
  • small commercial

Physical

Control type

push-button

[ie] rated operational current

9 A

Connections - terminals

  • screw terminal solid
  • screw terminal stranded

Height

204 mm

Width

101 mm

Net weight

1.387 kg

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Standards

  • AS/NZS 3100
  • AS/NZS 3133

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Motor starter type

direct on line

[us] rated supply voltage

240 V AC 50 Hz

Network type

AC

Rated operational power in w

4 kW at 240 V (AC-3)

Overload current

0.63...1 A

Tightening torque

0.8 N.m

Network number of phases

3 phases

Targeted country

Australia

Suitability for isolation

no

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

1.387 kg

Sustainable packaging

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Specification Guide

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
56 DOL9 Series 2 - Direct On-Line Motor Starter
ZIP

56 DOL9 Series 2 - Direct On-Line Motor Starter

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 410.5 KB
56 Series Performance in Power, 20139
ZIP

56 Series Performance in Power, 20139

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 375.2 KB
Revit Pack 56 Series
ZIP

Revit Pack 56 Series

VERSION

1.0

DATE

11 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.8 MB
56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today’s industry, 25510
ZIP

56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today’s industry, 25510

VERSION

2.0

DATE

08 May 2023

REVISION

2.0

DOWNLOAD (ZIP) 7 MB
Technical Specifications - Motor Control Gear
ZIP

Technical Specifications - Motor Control Gear

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 177.9 KB
Technical Specifications - 56 Series Industrial Switchgear
ZIP

Technical Specifications - 56 Series Industrial Switchgear

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 170.9 KB
Technical Specifications - Motor Starters
ZIP

Technical Specifications - Motor Starters

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 177.9 KB
56DOL9/1-GY EU RoHS Declaration
ZIP

56DOL9/1-GY EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
56DOL9/1-GY EU RoHS Declaration
ZIP

56DOL9/1-GY EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
56DOL9/1-RO EU RoHS Declaration
ZIP

56DOL9/1-RO EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
56DOL9/1-RO EU RoHS Declaration
ZIP

56DOL9/1-RO EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
