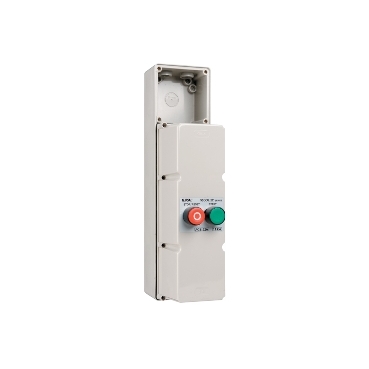

Clipsal - 56 Series, DOL Motor Starter, 11kW, 415V, 2 push-button

Home ProductsIndustrial56 SeriesDOL Motor Starter

Clipsal - 56 Series, DOL Motor Starter, 11kW, 415V, 2 push-button Grey

Item Number: 56DOL22/1-GY

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Product or component type

switch

Colour

cover: grey

Product destination

2 push-button

Market segment

<ul><li>industry</li><li>utility</li><li>small commercial</li></ul>

Physical

Control type

push-button

[ie] rated operational current

25 A

Connections - terminals

<ul><li>screw terminal solid</li><li>screw terminal stranded</li></ul>

Height

204 mm

Width

101 mm

Net weight

1.82 kg

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Standards

<ul><li>AS/NZS 3100</li><li>AS/NZS 3133</li></ul>

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Motor starter type

direct on line

[us] rated supply voltage

415 V AC 50 Hz

Network type

AC

Rated operational power in w

11 kW at 415 V (AC-3)

Overload current

16...24 A

Tightening torque

0.8 N.m

Network number of phases

3 phases

Targeted country

Australia

Suitability for isolation

no

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

1.82 kg
Show all specifications
