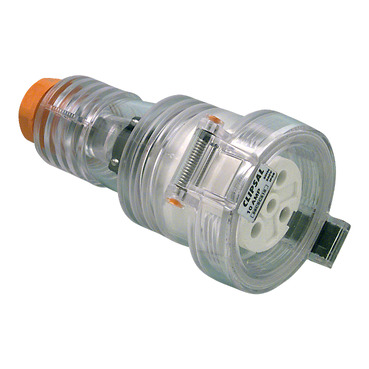

Clipsal - 56 Series Cord Extension Socket 5 Round PIN, 500V, 10A | Electric Orange

Item Number: 56CSC510-EO

Electric Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width90 mm

Height90 mm

Depth173 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554202880	EO
24	CAR	29311554113173	EO

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	socket
Device application	power supply
Market segment	industry small commercial utility

Physical

Mounting mode	external mounting
[in] rated current	10 A
[ue] rated operational voltage	500 V AC 50 Hz conforming to EN 60309-2
Connections - terminals	screw terminals 1-6 mm²
Connections - terminals	screw terminal
Socket number	1
Outlet standard	industrial
Cable outer diameter	7...16 mm
Cable entry	cable gland
Net weight	0.269 kg
Depth	173 mm
Length	173 mm
Width	90 mm
Height	90 mm
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Standards	AS/NZS 3120
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate: housing
Contacts material	sleeves: brass

Others

Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Legacy weee scope	In
Weee applicability	Finished product
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Plug, socket category	low voltage
Plug, socket, control station shape	straight
Poles description	3P + N + E
Voltage colour	black
Duration	7 h
Socket-outlet type	Q
Thread type	M25
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.3 cm
Package 1 width	9.5 cm
Package 1 length	17.5 cm
Package 1 weight	318.0 g
Total lifecycle carbon footprint	7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.3505600985221675
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.04644601477832512
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0022722118226600986
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.875245812807882
Carbon footprint of the use phase [b2, b3, b4, b6]	6 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.05963674876847291
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	7.334207881773399
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
