Clipsal - 56 Series Appliance Inlet IP66, 250V 20A - 3 Round Pins | Grey
Item Number: 56AI320-GY
Specifications
Design
| Range | Clipsal - 56 Series |
|---|---|
| Range of product | Series 56 |
| Product brand | Clipsal |
| Product or component type | appliance inlet |
| Device application | power supply |
| Colour | grey (RAL 7035) |
| Market segment |
|
Physical
| [in] rated current | 20 A |
|---|---|
| [ue] rated operational voltage | 250 V 50/60 Hz conforming to EN 60309-2 |
| Mounting mode | surface mounted |
| Outlet standard | industrial |
| Connections - terminals | screw terminal 2.5-6 mm² rigid or stranded cable |
| Net weight | 0.9 kg |
| Height | 204 mm |
| Width | 101 mm |
| Depth | 138 mm |
| Standards | AS/NZS 60320.1 |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1508011_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|---|
| Material | polycarbonate: cover |
| Contacts material | screws: brass |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-
Specification Guide
-

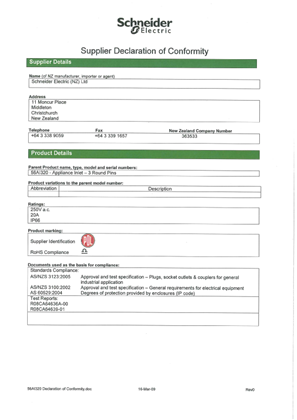

Declaration of Conformity
-
