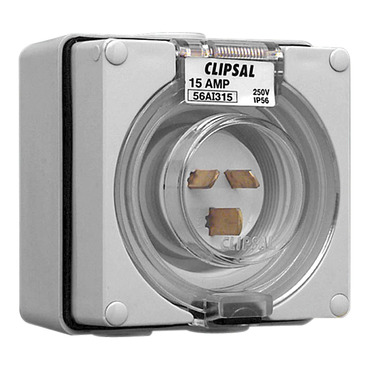

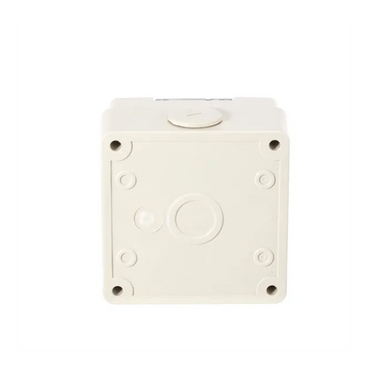

Clipsal - 56 Series Appliance Inlet IP66, 250V 15A - 3 Flat Pins | Grey

Item Number: 56AI315-GY

Grey 1 PCE 0
Chemical Resistant Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width101 mm

Height107 mm

Depth82 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554202828	GY
24	CAR	19311554112537	GY
1	PCE	9311554069407	RO
24	CAR	19311554112520	RO

Specifications

Design

Range	Clipsal - 56 Series
Range of product	Series 56
Product brand	Clipsal
Product or component type	appliance inlet
Device application	power supply
Colour	grey (RAL 7035)
Market segment	small commercial industry utility

Physical

[in] rated current	15 A
[ue] rated operational voltage	250 V 50/60 Hz conforming to EN 60309-2
Mounting mode	surface mounted
Outlet standard	industrial
Connections - terminals	screw terminal 2.5-6 mm² rigid or stranded cable
Net weight	0.42 kg
Height	107 mm
Width	101 mm
Depth	82 mm
Standards	AS/NZS 60320.1
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1508011_V2
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	plastic
Material	polycarbonate: cover
Contacts material	screws: brass

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Poles description	1P + N + E
Voltage colour	blue
Plug, socket category	low voltage
Outlet standard deviation	Australian/New Zealand
Tightening torque	0.8 N.m
Plug, socket, control station shape	straight
Duration	6 h
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.85 cm
Package 1 width	10.35 cm
Package 1 length	10.65 cm
Package 1 weight	416 g
Unit type of package 2	CAR
Number of units in package 2	24
Package 2 height	21.4 cm
Package 2 width	29.7 cm
Package 2 length	42.9 cm
Package 2 weight	10.512 kg
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.002192541477507222
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00005365764754436648
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00000242320429219975
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.00002133425000000001
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00007424647131654972
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0023479567082129588
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
