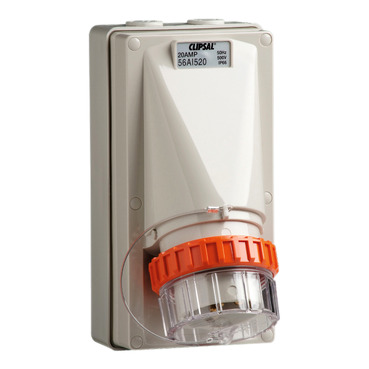

Clipsal - 56 Series, Appliance Inlet, 5 Round PIN, 20A, 500V, IP66

Clipsal - 56 Series, Appliance Inlet, 5 Round PIN, 20A, 500V, IP66 Electric Orange

Item Number: 56AI520-EO

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height204 mm

Depth icon

Depth138 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal - 56 Series

Range of product

Series 56

Product brand

Clipsal

Product or component type

appliance inlet

Device application

power supply

Colour

grey (RAL 7035)

Market segment

utility|industry|small commercial

Physical

[in] rated current

20 A

[ue] rated operational voltage

500 V 50/60 Hz conforming to EN 60309-2

Mounting mode

surface mounted

Outlet standard

industrial

Connections - terminals

screw terminal 2.5-6 mm² rigid or stranded cable

Net weight

0.78 kg

Height

204 mm

Width

101 mm

Depth

138 mm

Standards

AS/NZS 60320.1

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Material

polycarbonate: cover

Contacts material

screws: brass

Others

Package 1 bare product quantity

1

Poles description

3P + N + E

Voltage colour

black

Plug, socket category

low voltage

Outlet standard deviation

Australian/New Zealand

Tightening torque

0.8 N.m

Plug, socket, control station shape

angled

Duration

7 h

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

16.0 cm

Package 1 width

10.5 cm

Package 1 length

20.6 cm

Package 1 weight

774.0 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

25.4 cm

Package 2 width

34.8 cm

Package 2 length

44.5 cm

Package 2 weight

14.706 kg

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
