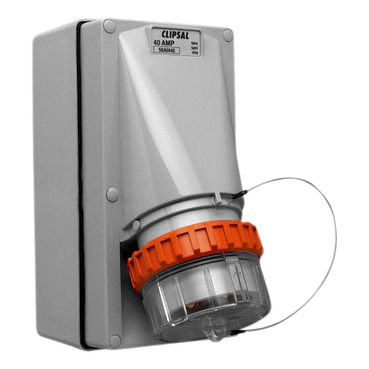

Clipsal - 56 Series, Appliance Inlet, 4 Round PIN, 40A, 500V, IP66

Clipsal - 56 Series, Appliance Inlet, 4 Round PIN, 40A, 500V, IP66 Grey

Item Number: 56AI440-GY

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height204 mm

Depth icon

Depth165 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal - 56 Series

Range of product

Series 56

Product brand

Clipsal

Product or component type

appliance inlet

Device application

power supply

Colour

grey (RAL 7035)

Market segment

industry|utility|small commercial

Physical

[in] rated current

40 A

[ue] rated operational voltage

500 V 50/60 Hz conforming to EN 60309-2

Mounting mode

surface mounted

Outlet standard

industrial

Connections - terminals

screw terminal 10-16 mm² rigid or stranded cable

Net weight

0.9 kg

Height

204 mm

Width

101 mm

Depth

165 mm

Standards

AS/NZS 60320.1

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Material

polycarbonate: cover

Contacts material

screws: brass

Others

Package 1 bare product quantity

1

Poles description

3P + E

Voltage colour

black

Plug, socket category

low voltage

Outlet standard deviation

Australian/New Zealand

Tightening torque

0.8 N.m

Plug, socket, control station shape

angled

Duration

7 h

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.5 cm

Package 1 width

10 cm

Package 1 length

20 cm

Package 1 weight

968 g
