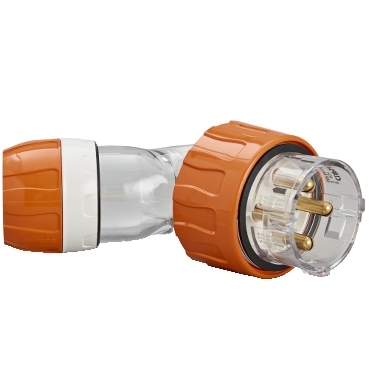

Clipsal - 56 Series Angled Plug IP66, 500V 40A - 4 Round Pins | Electric Orange

Item Number: 56PA440-EO

Electric Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width130 mm

Height78 mm

Depth168 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554237479	EO
20	CAR	19311554115897	EO

Specifications

Design

Range	Clipsal - 56 Series
Range of product	Series 56
Product brand	Clipsal
Product or component type	plug
Device application	power supply
Colour	body: orange (RAL 2004)
Market segment	small commercial utility industry

Physical

[in] rated current	40 A
[ue] rated operational voltage	500 V AC 50 Hz conforming to EN 60309-2
Outlet standard	industrial
Connections - terminals	screw terminal 2.5-25 mm²
Wire stripping length	50 mm 20 mm
Cable entry	cable gland
Net weight	0.5 kg
Height	78 mm
Width	130 mm
Depth	168 mm
Standards	AS/NZS 3123
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP121020EN_V2
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	plastic
Material	polycarbonate: housing
Contacts material	pins: brass

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Poles description	3P + E
Voltage colour	black
Plug, socket category	low voltage
Thread type	M40
Plug, socket, control station shape	angled
Pin arrangement	O
Duration	7 h
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.2 cm
Package 1 width	9.2 cm
Package 1 length	19.9 cm
Package 1 weight	427.0 g
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.210387849007866
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.15365870586902278
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0015890922986379777
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.008641331557165
Carbon footprint of the use phase [b2, b3, b4, b6]	5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.9132826525993367
Carbon footprint of the end-of-life phase [c1 to c4]	0.9 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	8.287559631332028
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
