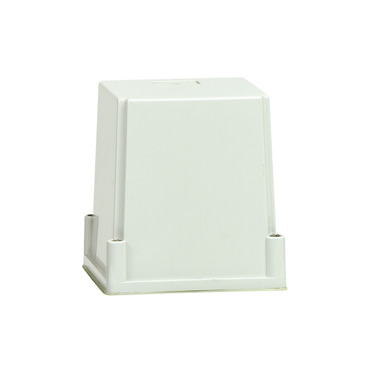

Clipsal - 56 Series, Adaptable Enclosures Cover, 1 Gang Cover only Grey
Item Number: 56XDB1L-GY
Specifications
Design
Range
Clipsal - 56 Series
Range of product
Series 56
Product brand
Clipsal
Product or component type
enclosure
Colour
grey (RAL 7035)
Physical
Device mounting
surface
Mounting mode
wall-mounted
Width
95 mm
Height
95 mm
Depth
100 mm
Net weight
0.6 kg
Standards
AS 3100
Ip degree of protection
IP66 conforming to AS 60529
Ambient air temperature for operation
-25...75 °C
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
polycarbonate: housing
Others
Commercial status history
SESA301466 | Wed Sep 27 02:54:00 EDT 2023 | From Import Local | From 14 to 19
Package 1 bare product quantity
1
Compatibility code
56 Series covers
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.5 cm
Package 1 width
10.0 cm
Package 1 length
10.5 cm
Package 1 weight
203.0 g
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Installation Instruction
ZIP
Installation Instructions - F1821/04 - 56 Series, Use of Caps and Sealant for full IP66 Applications, 22957
VERSION
1.0
DATE
02 Nov 2023
REVISION
1.0
DOWNLOAD (ZIP) 65.2 KB
ZIP
Installation Instructions - F062/04 - 56FA Series Flush Surrounds, 19602
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 95 KB
