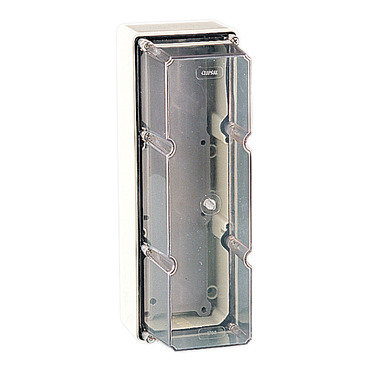

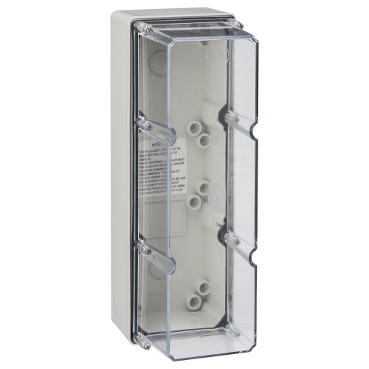

Clipsal - 56 Series, Adaptable Enclosure, Deep, 3 Gang, 140x294x101mm

Home ProductsIndustrial56 SeriesAdaptable Enclosure

Clipsal - 56 Series, Adaptable Enclosure, Deep, 3 Gang, 140x294x101mm Grey

Item Number: 56DB3-GY

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height294 mm

Depth icon

Depth140 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Colour

grey (RAL 7035)

Physical

Number of gangs

3 gangs

Device mounting

surface

Mounting mode

wall-mounted

Fixing mode

by screws

Length

140 mm

Width

101 mm

Depth

140 mm

Height

294 mm

Net weight

1.2 kg

Ip degree of protection

IP66 conforming to AS 60529

Standards

AS 3100

Ambient air temperature for operation

-25...75 °C

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PVC (polyvinyl chloride): housing

Others

Commercial status history

SESA301466 | Sun Feb 04 09:39:00 EST 2024 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Cover type

transparent

Shape

rectangular

Number of mounting holes

12

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.5 cm

Package 1 width

16.0 cm

Package 1 length

31.0 cm

Package 1 weight

1240.0 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

47.5 cm

Package 2 width

34.2 cm

Package 2 length

39.0 cm

Package 2 weight

12.4 kg
