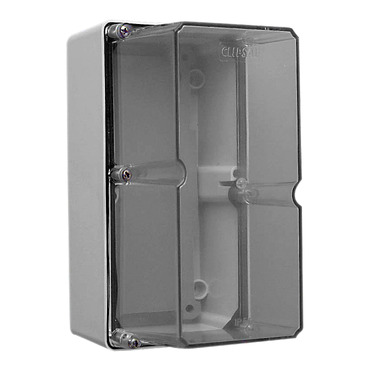

Clipsal - 56 Series Adaptable Enclosure Deep, 2 Gang, 140x101x198mm | Chemical Resistant Orange

Item Number: 56DB2-RO

Grey 1 PCE 0
Electric Orange 1 PCE 0
Chemical Resistant Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width101 mm

Height198 mm

Depth140 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554070540	EO
18	CAR	19311554070547	EO
1	PCE	9311554203160	GY
18	CAR	19311554114661	GY
1	PCE	9311554236649	RO
18	CAR	19311554194809	RO

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Colour	grey (RAL 7035)

Physical

Number of gangs	2 gangs
Device mounting	surface
Mounting mode	wall-mounted
Fixing mode	by screws
Length	140 mm
Width	101 mm
Depth	140 mm
Height	198 mm
Net weight	0.8 kg
Ip degree of protection	IP66 conforming to AS 60529
Standards	AS 3100
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511029_V1-EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PVC (polyvinyl chloride): housing

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Cover type	transparent
Shape	rectangular
Number of mounting holes	8
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	15.5 cm
Package 1 width	10.0 cm
Package 1 length	20.0 cm
Package 1 weight	840.0 g
Unit type of package 2	CAR
Number of units in package 2	9
Package 2 height	36.0 cm
Package 2 width	34.5 cm
Package 2 length	40.5 cm
Package 2 weight	8.1 kg
Total lifecycle carbon footprint	6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.501454091531374
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.12072119832082011
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.17214367979324724
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.4007331367058578
Carbon footprint of the use phase [b2, b3, b4, b6]	0.4 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.5395260812266708
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	5.734578187577971
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	ENVEOLI2511029EN
Take-back	No
Warranty (in months)	18
