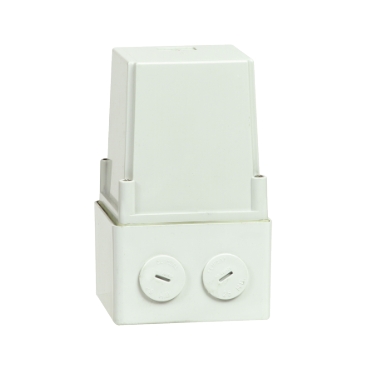

Clipsal - 56 Series Adaptable Enclosure Deep, 1 Gang, 165x101x101mm | Grey
Item Number: 56XDB1-GY
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Colour | grey (RAL 7035) |
Physical
| Number of gangs | 1 gang |
|---|---|
| Mounting mode | wall-mounted |
| Fixing mode | by screws |
| Length | 165 mm |
| Width | 101 mm |
| Depth | 165 mm |
| Height | 101 mm |
| Net weight | 0.6 kg |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Standards | AS 3100 |
| Ambient air temperature for operation | -25...75 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PVC (polyvinyl chloride): housing |
|---|
