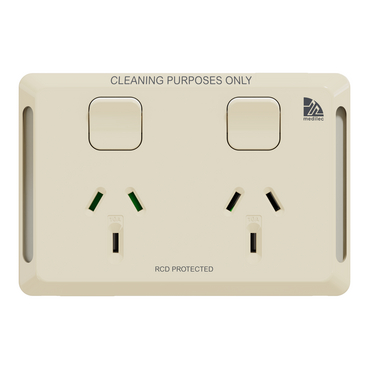

Medilec Twin switched socket cleaner, 10A, horizontal, antibacterial | Beige

Item Number: MLP3025A-BG

Beige 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width116 mm

Height78.2 mm

Embedding depth34.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606487423966	BG
32	CAR	13606487423963	BG

Specifications

Design

Range	Medilec
Product or component type	switched socket
Product brand	Clipsal
Colour tint	beige
Surface finish	glossy
Surface treatment	antibacterial
Warranty	2 years

Physical

Device presentation	complete device
Control type	rocker
Number of gangs	2 gangs
Pin number	3
Number of power socket outlets	2
Actuator	switch
Fixing mode	screw
Local signalling	indicator LED
Device mounting	wall mounted
Mounting position	horizontal
Type of installation	indoor installation
[ue] rated operational voltage	230...240 V AC
[in] rated current	10 A

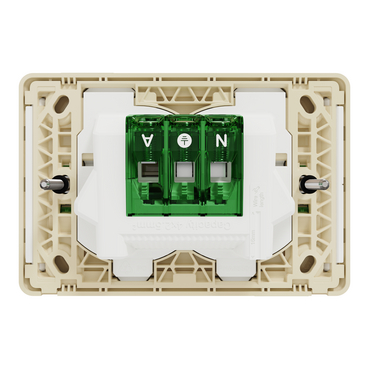

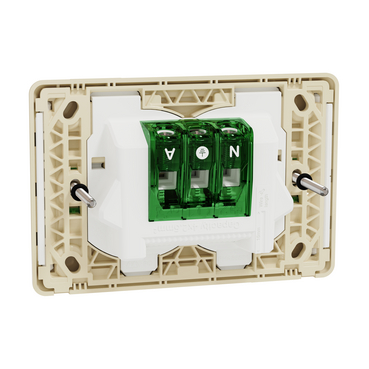

Connections - terminals	4 x 2.5 mm² screw terminal 3 x 4 mm² screw terminal
Embedding depth	34.6 mm
Depth	43.6 mm
Height	78.2 mm
Width	116 mm
Fixing center	84 mm
Net weight	94 g
Screwdriver shape	Philips No 2 square drive no 1 (SQ1)
Wire stripping length	16 mm
Number of power socket outlets	2 x 1P + E, Australian/New Zealand
Number of rocker	2
Ip degree of protection	IP20

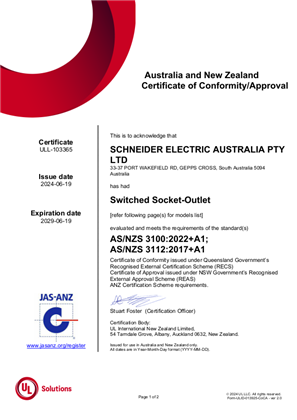

Standards	AS/NZS 3190 AS/NZS 3100 ISO 22196
Relative humidity	10...95 %
Ambient air temperature for operation	0...45 °C
Environmental characteristic	indoor use
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2412007_V1-EN
Eu rohs directive	Compliant By Exemption

Material

Material	ABS (acrylonitrile butadiene-styrene)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	32
Package 3 bare product quantity	1536
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	24
Weee label	N/A
Weee applicability	Finished product
Socket additional information	shuttered
Main colour tint	beige
Socket-outlet type	double socket-outlet
Network frequency	50 Hz
Earth-leakage protection class	type I type A
Thickness	9 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.1 cm
Package 1 width	8.1 cm
Package 1 length	12.6 cm
Package 1 weight	94 g
Unit type of package 2	CAR
Number of units in package 2	32
Package 2 height	22.4 cm
Package 2 width	26.1 cm
Package 2 length	33.5 cm
Package 2 weight	3.1 kg
Unit type of package 3	PAL
Number of units in package 3	1536
Package 3 height	95 cm
Package 3 width	114 cm
Package 3 length	114 cm
Package 3 weight	168.9 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	22 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.313180646236911
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.4137387097531589
Carbon footprint of the distribution phase [a4]	0.4 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0007199902031344798
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	19.561838392617805
Carbon footprint of the use phase [b2, b3, b4, b6]	20 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.2151270770387537
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	21.504604815849763
Average percentage of recycled metal content	0 %
Pvc free	Yes
End of life manual availability	ENVEOLI2412007EN
Take-back	No
Warranty (in months)	24
