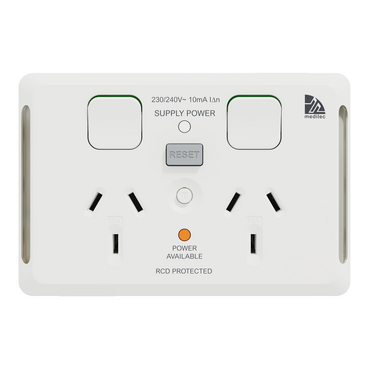

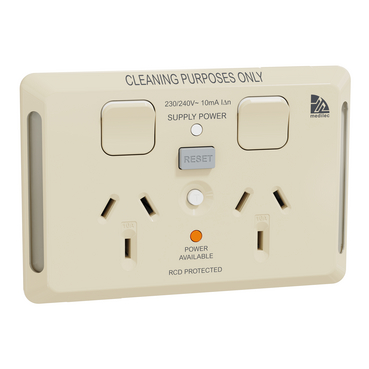

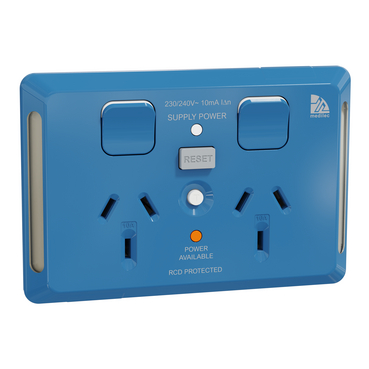

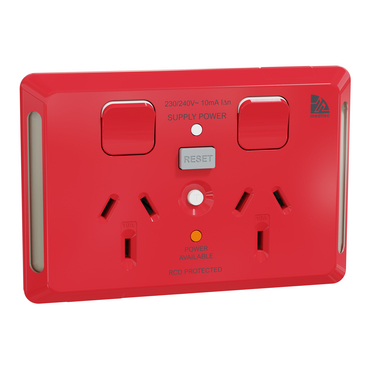

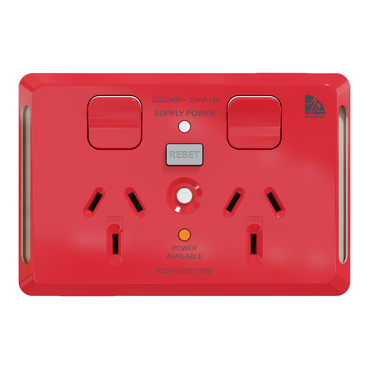

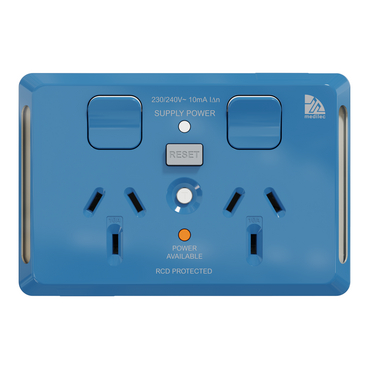

Medilec, Twin switched socket, 20A for RCD, 10mA, 10A, horizontal, antibacterial

Home ProductsHealth SolutionsMedilecTwin switched socket

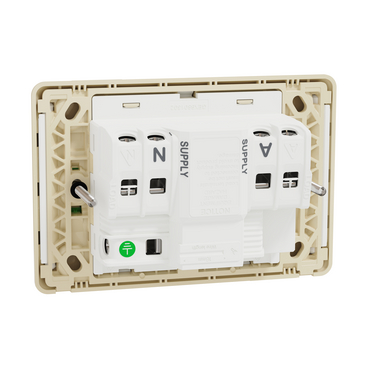

Medilec, Twin switched socket, 20A for RCD, 10mA, 10A, horizontal, antibacterial Beige

Item Number: MLP3025RCD10A-BG

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width116 mm

Height icon

Height78.2 mm

Embedding depth icon

Embedding depth34.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Medilec

Range

Medilec

Product or component type

RCD socket

Product brand

Clipsal

Device application

residual current device

Colour tint

white electric

Surface finish

glossy

Surface treatment

antibacterial

Warranty

2 years

Physical

Device presentation

complete device

Control type

rocker

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

rocker

Fixing mode

screw

Local signalling

indicator light

Device mounting

wall mounted

Mounting position

horizontal

Type of installation

indoor installation

[ue] rated operational voltage

230...240 V AC

[in] rated current

10 A

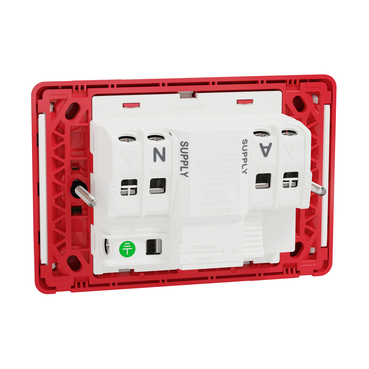

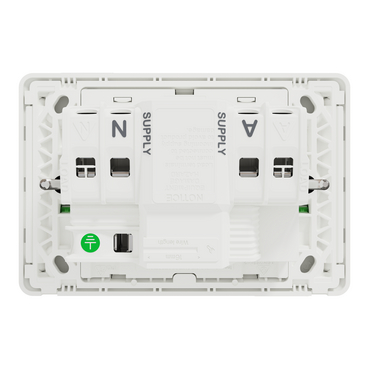

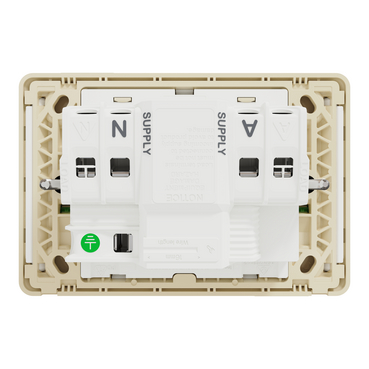

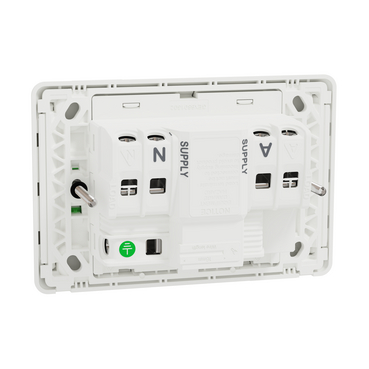

Connections - terminals

  • 4 x 2.5 mm² screw terminal
  • 3 x 4 mm²
  • 3 x 4 mm² screw terminal

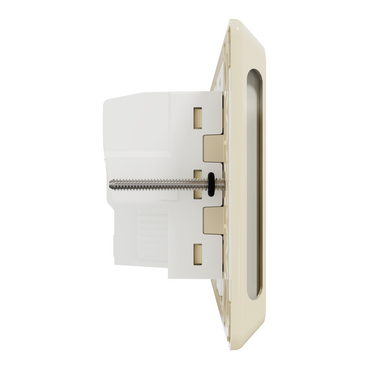

Embedding depth

34.6 mm

Depth

43.6 mm

Height

78.2 mm

Width

116 mm

Fixing center

84 mm

Net weight

188 g

Screwdriver shape

  • Philips No 2
  • square drive no 1 (SQ1)

Wire stripping length

16 mm

Number of power socket outlets

2 x 2P + E, Australian/New Zealand

Number of rocker

2

Ip degree of protection

IP20

Standards

  • AS/NZS 3190
  • AS/NZS 3100
  • ISO 22196

Relative humidity

10...95 %

Ambient air temperature for operation

0...45 °C

Environmental characteristic

indoor use

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

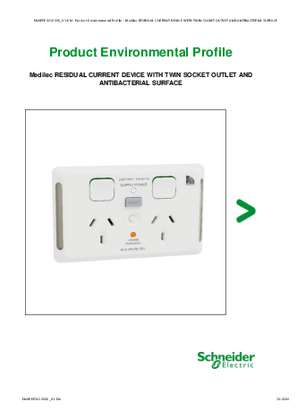

Environmental disclosure

ENVPEP2412006EN

Circularity profile

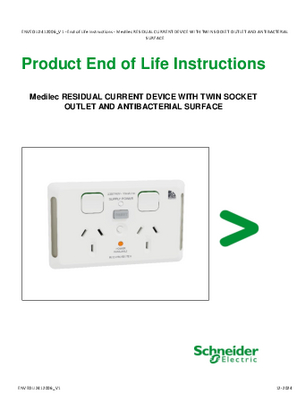

ENVEOLI2412006EN

Material

Material

ABS (acrylonitrile butadiene-styrene)

Others

Commercial status history

  • SESA785182
  • Tue Apr 15 07:53:00 CEST 2025
  • From Unitary Local
  • From 04 to 08

Package 3 bare product quantity

1536

Package 2 bare product quantity

32

Package 1 bare product quantity

1

Socket additional information

shuttered

Main colour tint

white electric

Socket-outlet type

double socket-outlet

Network frequency

50 Hz

Earth-leakage protection class

  • type I
  • type A

Trip unit rating

10 mA

Thickness

9 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.1 cm

Package 1 width

8.1 cm

Package 1 length

12.6 cm

Package 1 weight

213 g

Unit type of package 2

CAR

Number of units in package 2

32

Package 2 height

22.4 cm

Package 2 width

26.1 cm

Package 2 length

33.5 cm

Package 2 weight

6.5 kg

Unit type of package 3

PAL

Number of units in package 3

1536

Package 3 height

95 cm

Package 3 width

114 cm

Package 3 length

114 cm

Package 3 weight

334.8 kg

Green premium status for reporting

Green Premium product

Take-back

N/A

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

181.22333228165294

Global warming ; total life cycle​

181 kg CO2 eq.

Minimum percentage of recycled plastic content

0
