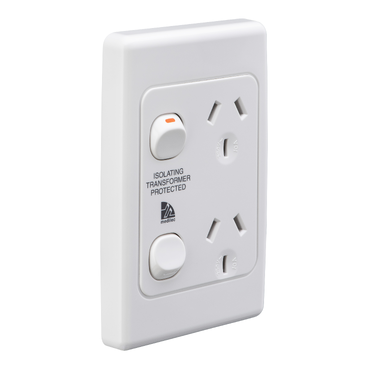

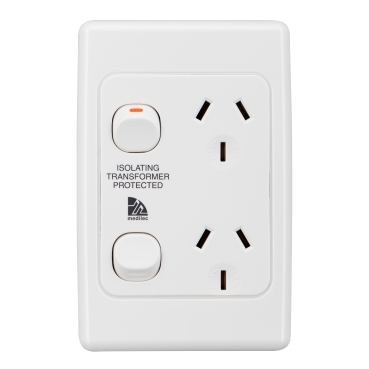

Medilec Socket Twin Vertical Double Pole

White Electric 1 PCE 0

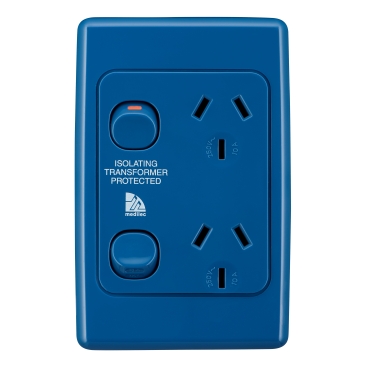

Dark Blue 1 PCE 0

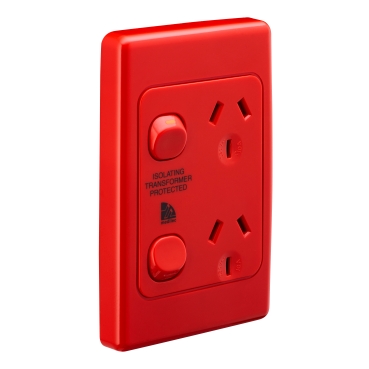

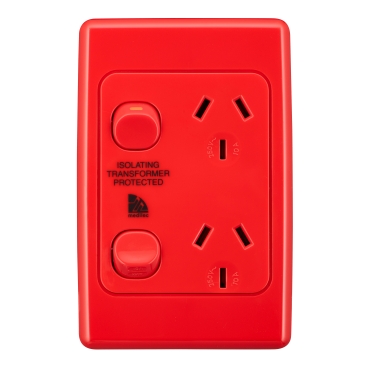

Red 1 PCE 0

Home ProductsHealth SolutionsMedilecSocket

Medilec Socket Twin Vertical Double Pole | White Electric

Item Number: ML2025VD-WE

White Electric 1 PCE 0
Dark Blue 1 PCE 0
Red 1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554534370	WE
4	CRT	9311554679248	WE
12	CAR	39311554534371	WE
1	PCE	9311554673307	DB
4	CRT	9311554679224	DB
12	CAR	39311554673308	DB
1	PCE	9311554673338	RD
4	CRT	9311554679231	RD
12	CAR	39311554673339	RD

Specifications

Design

Range of product	ML2000 Moulded Series Medilec
Product or component type	switched socket
Product brand	Clipsal

Physical

Control type	ON/OFF button
Number of gangs	2 gangs
Pin number	3
Number of power socket outlets	2
Actuator	switch rocker
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	vertical
[ue] rated operational voltage	250 V AC
[in] rated current	10 A
Length	116 mm
Width	76 mm
Standards	AS/NZS 3112
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2406022_V1-EN
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Main colour tint	white electric
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	126 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.690693954594593
Carbon footprint of the manufacturing phase [a1 to a3]	0.7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06703422677976459
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.025711472274440556
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.055881093217703
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.26623614727991585
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	4.105556894146417
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Product Brochures
Other technical guide
Environmental Disclosure
Specification Guide
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

AutoCAD file MERLONEC

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 38.3 KB

AutoCAD file CARDIACSYMBOL

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 23.2 KB

Medilec CAD Library

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 16.2 MB

AutoCAD file Esco EPS

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 28.4 KB

AutoCAD file ESCOGAS

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 30.4 KB

AutoCAD file MERLONNA

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 45.9 KB

Medilec REVIT Library

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 9.2 MB

AutoCAD file ESCOSCAV/SUC

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 34.5 KB

AutoCAD file MERLON CUTOUT

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 37.3 KB

AutoCAD file BODYSYMBOL

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 23.3 KB

Keep the bugs at bay with 'germ-shield', 20217

Keep the bugs at bay with 'germ-shield', 20217

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 769.9 KB

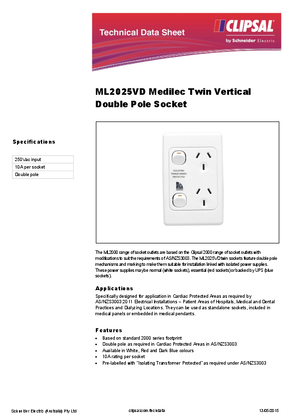

Product Data Sheet - ML2025VD Medilec Twin Vertical Double Pole Socket
