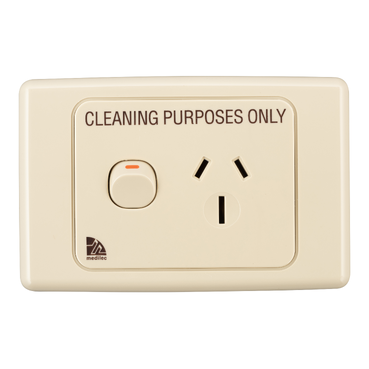

Medilec Single Switch Socket Outlet 250V, 15A, Cleaner Label

Beige 1 PCE 0

Home ProductsHealth SolutionsMedilecSingle Switch Socket Outlet

Medilec Single Switch Socket Outlet 250V, 15A, Cleaner Label | Beige

Item Number: ML2015/15C-BG

Beige 1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554688882	BG
5	CRT	9311554688875	BG
50	CAR	19311554688872	BG

Specifications

Design

Range of product	Medilec ML2000 Moulded Series
Product or component type	switched socket
Product brand	Clipsal

Physical

Control type	ON/OFF button
Number of gangs	1 gang
Pin number	3
Number of power socket outlets	1
Actuator	rocker switch
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	horizontal
[ue] rated operational voltage	250 V AC
[in] rated current	15 A
Length	116 mm
Width	76 mm
Standards	AS/NZS 3112
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2309015_V1
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Main colour tint	beige
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	25 cm
Package 1 width	75 cm
Package 1 length	115 cm
Package 1 weight	0.088 kg
Total lifecycle carbon footprint	10 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.5756018339341823
Carbon footprint of the manufacturing phase [a1 to a3]	0.6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.02456092865640888
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.013344973594588408
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	9.5972
Carbon footprint of the use phase [b2, b3, b4, b6]	10 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.23414943693298174
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	10.444857173118162
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
Take-back	No
Warranty (in months)	18
