Medilec Single Switch Socket Outlet 250V, 10A, Vertical, 2 Pole, 10A, 250V

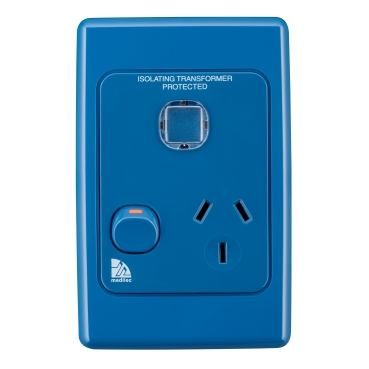

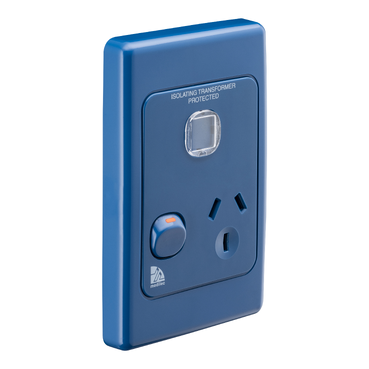

Dark Blue 1 PCE 0

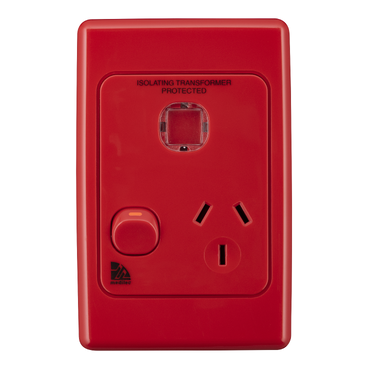

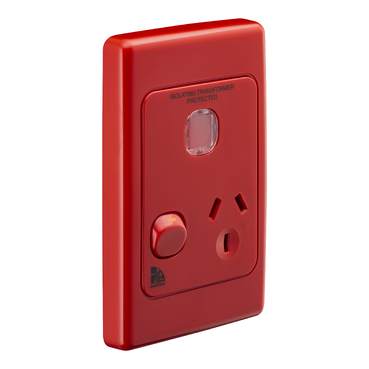

Red 1 PCE 0

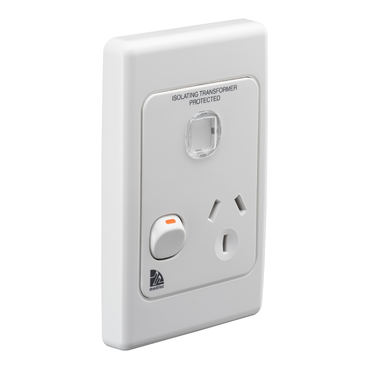

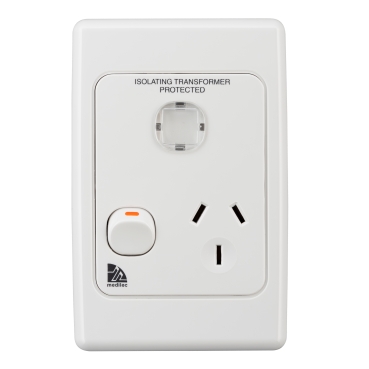

White Electric 1 PCE 0

Home ProductsHealth SolutionsMedilecSingle Switch Socket Outlet

Medilec Single Switch Socket Outlet 250V, 10A, Vertical, 2 Pole, 10A, 250V | Dark Blue

Item Number: ML2015VDI-DB

Dark Blue 1 PCE 0
Red 1 PCE 0
White Electric 1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554533793	WE
5	CRT	9311554672782	WE
50	CAR	19311554533790	WE
1	PCE	9311554672720	DB
5	CRT	9311554672737	DB
50	CAR	19311554672727	DB
1	PCE	9311554672751	RD
5	CRT	9311554672768	RD
50	CAR	19311554672758	RD

Specifications

Design

Range of product	Medilec ML2000 Moulded Series
Product brand	Clipsal

Physical

Control type	ON/OFF button
Number of gangs	1 gang
Pin number	3
Number of power socket outlets	1
Actuator	rocker switch
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	vertical
[ue] rated operational voltage	250 V AC
[in] rated current	10 A
Length	116 mm
Width	76 mm
Standards	AS/NZS 3112
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2309015_V1
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Main colour tint	dark blue
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	213 g
Total lifecycle carbon footprint	12 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.3932180753179642
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.05944861140698968
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0323009019959924
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	9.5972
Carbon footprint of the use phase [b2, b3, b4, b6]	10 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.5667480689400581
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	11.648915657661005
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
Take-back	No
Warranty (in months)	18
