Medilec Single Switch Socket Outlet 250V, 10A, 2 Pole

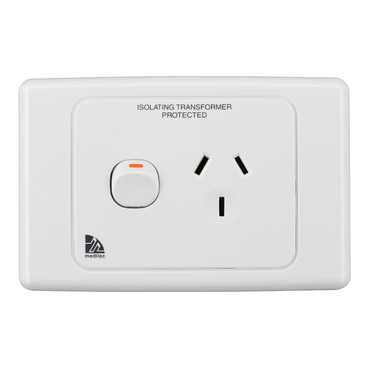

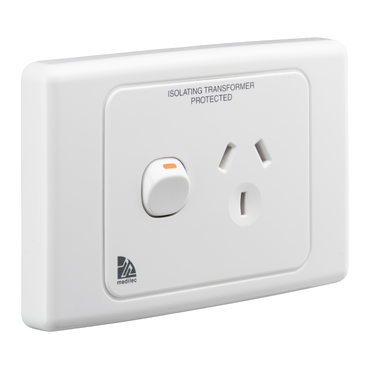

White Electric 1 PCE 0
Dark Blue 1 PCE 0

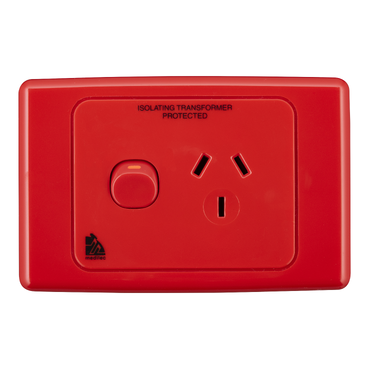

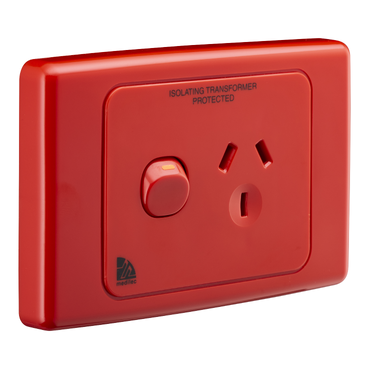

Red 1 PCE 0

Home ProductsHealth SolutionsMedilecSingle Switch Socket Outlet

Medilec Single Switch Socket Outlet 250V, 10A, 2 Pole | Dark Blue

Item Number: ML2015D-DB

White Electric 1 PCE 0
Dark Blue 1 PCE 0
Red 1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554534134	WE
5	CRT	9311554672423	WE
50	CAR	19311554534131	WE
1	PCE	9311554672355	DB
5	CRT	9311554672386	DB
50	CAR	19311554672352	DB
1	PCE	9311554672362	RD
5	CRT	9311554672409	RD
50	CAR	19311554672369	RD

Specifications

Design

Range of product	ML2000 Moulded Series Medilec
Product or component type	switched socket
Product brand	Clipsal

Physical

Control type	ON/OFF button
Number of gangs	1 gang
Pin number	3
Number of power socket outlets	1
Actuator	rocker switch
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	horizontal
[ue] rated operational voltage	250 V AC
[in] rated current	10 A
Length	116 mm
Width	76 mm
Standards	AS/NZS 3112
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2309015_V1
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	1 g
Total lifecycle carbon footprint	10 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.006540929931070254
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0002791014620046464
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0001516474272112319
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	9.5972
Carbon footprint of the use phase [b2, b3, b4, b6]	10 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.002660789056056611
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	9.606832467876343
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Halogen-free status	Halogen free product
Pvc free	Yes
Take-back	No
Warranty (in months)	18

Show all specifications
