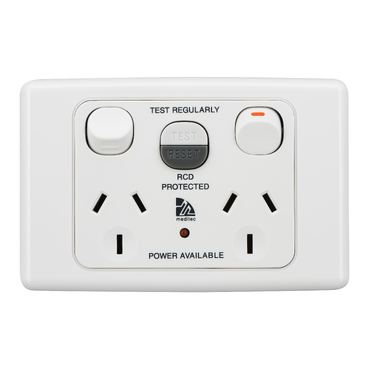

Medilec RCD Protected Medilec Twin Switch Socket Outlet, 250V, 10A, 1 Pole, Horizontal, 10mA RCD

Home ProductsHealth SolutionsMedilecRCD Protected Medilec

Medilec RCD Protected Medilec Twin Switch Socket Outlet, 250V, 10A, 1 Pole, Horizontal, 10mA RCD | Red

Item Number: ML2025RC10-RD

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

  • Medilec
  • ML2000 Moulded Series

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

  • rocker
  • switch

Fixing mode

by screws

Local signalling

indicator light

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Fixing center

84 mm

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2412006EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Earth-leakage protection class

type I

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

10 cm

Package 1 length

2 cm

Package 1 weight

232 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

12 cm

Package 2 width

10 cm

Package 2 length

36.8 cm

Package 2 weight

1.282 kg

Sustainable packaging

No

Pvc free

No

Halogen-free status

Halogen free product

Silicone-free

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Silicone-free

No

End of life manual availability

ENVEOLI2412006EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • End of Life Manual

  • Environmental Disclosure

  • Specification Guide

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
AutoCAD file MERLONEC
ZIP

AutoCAD file MERLONEC

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 38.3 KB
AutoCAD file CARDIACSYMBOL
ZIP

AutoCAD file CARDIACSYMBOL

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 23.2 KB
Medilec CAD Library
ZIP

Medilec CAD Library

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 16.2 MB
AutoCAD file Esco EPS
ZIP

AutoCAD file Esco EPS

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 28.4 KB
AutoCAD file ESCOGAS
ZIP

AutoCAD file ESCOGAS

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 30.4 KB
AutoCAD file MERLONNA
ZIP

AutoCAD file MERLONNA

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 45.9 KB
Medilec REVIT Library
ZIP

Medilec REVIT Library

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 9.2 MB
AutoCAD file ESCOSCAV/SUC
ZIP

AutoCAD file ESCOSCAV/SUC

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 34.5 KB
AutoCAD file MERLON CUTOUT
ZIP

AutoCAD file MERLON CUTOUT

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 37.3 KB
AutoCAD file BODYSYMBOL
ZIP

AutoCAD file BODYSYMBOL

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 23.3 KB
Keep the bugs at bay with 'germ-shield', 20217
ZIP

Keep the bugs at bay with 'germ-shield', 20217

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 769.9 KB
Medilec RESIDUAL CURRENT DEVICE WITH TWIN SOCKET OUTLET AND ANTIBACTERIAL SURFACE
ZIP

Medilec RESIDUAL CURRENT DEVICE WITH TWIN SOCKET OUTLET AND ANTIBACTERIAL SURFACE

VERSION

1.0

DATE

16 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 254.3 KB
Medilec RESIDUAL CURRENT DEVICE WITH TWIN SOCKET OUTLET AND ANTIBACTERIAL SURFACE
ZIP

Medilec RESIDUAL CURRENT DEVICE WITH TWIN SOCKET OUTLET AND ANTIBACTERIAL SURFACE

VERSION

1.0

DATE

16 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 373.2 KB
Technical Specifications - ML2000 Series - Moulded
ZIP

Technical Specifications - ML2000 Series - Moulded

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 504.1 KB
Technical Specifications - ML2000 Series - Flush Moulded - Accessories
ZIP

Technical Specifications - ML2000 Series - Flush Moulded - Accessories

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 248.8 KB
Medilec, 2025RC switched socket, Certificate, RCM, TUV Rheinland PTY. LTD
ZIP

Medilec, 2025RC switched socket, Certificate, RCM, TUV Rheinland PTY. LTD

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

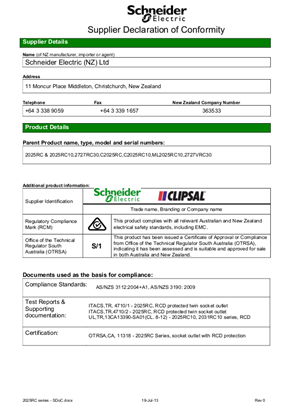

Classic C2000 Series, Declaration of Conformity
