Home ProductsHealth SolutionsMedilecEquipotential Earthing Stud

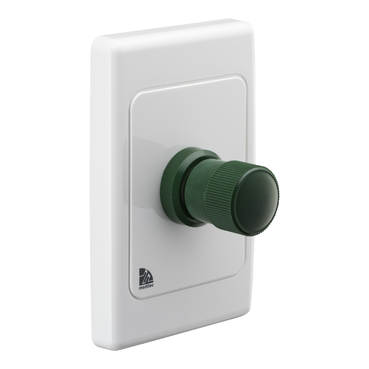

Medilec Equipotential Earthing Stud Vertical Mount, 1 Gang | White Electric

Item Number: ML2031VR01-WE

White Electric 1 PCE 0
Red 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554534615	WE
10	CAR	29311554534619	WE
1	PCE	9311554671440	RD
10	CAR	29311554671444	RD

Specifications

Design

Range of product	Medilec Series ML2000
Product or component type	earthing stud
Product brand	Clipsal

Physical

Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2202022_V1
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	218 g
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.001117918453038674
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00000644171933701657
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00000234673988950276
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0000421571049723757
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0011688640172375698
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Halogen-free status	Halogen free product
Pvc free	Yes
Take-back	No
Warranty (in months)	18

Show all specifications
