Medilec Audible/Visual Alarm 250VAC, 1 Gang, Vertical

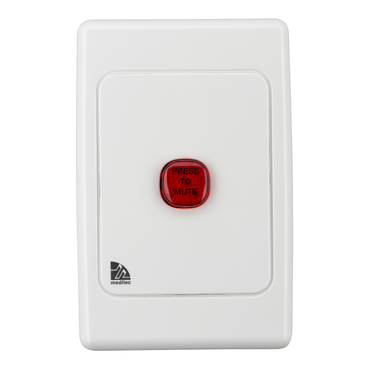

White Electric 1 PCE 0
Dark Blue 1 PCE 0

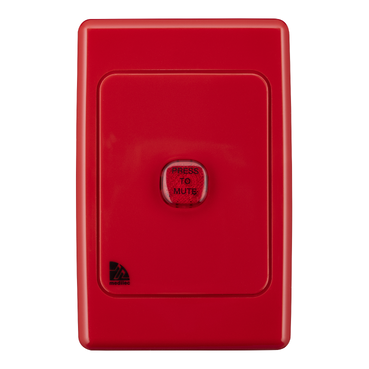

Red 1 PCE 0

Home ProductsHealth SolutionsMedilecAudible/Visual Alarm

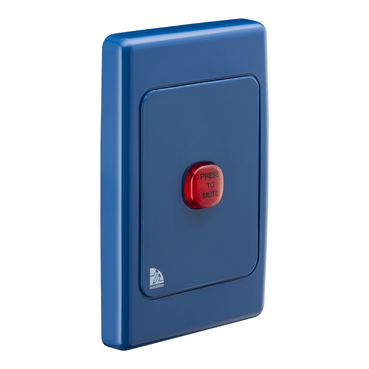

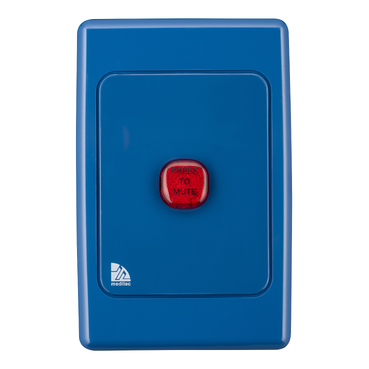

Medilec Audible/Visual Alarm 250VAC, 1 Gang, Vertical | Dark Blue

Item Number: ML2031VE08-DB

White Electric 1 PCE 0
Dark Blue 1 PCE 0
Red 1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554533472	WE
20	CAR	19311554533479	WE
1	PCE	9311554671419	DB
20	CAR	19311554671416	DB
1	PCE	9311554671426	RD
20	CAR	19311554671423	RD

Specifications

Design

Product brand	Clipsal
Range of product	Medilec Series ML2000

Physical

Rated voltage	250 V
Standards	AS/NZS 3100 AS/NZS 3003
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2108022_V2-EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Signalling type	visual message
Network type	AC
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.0 cm
Package 1 width	9.0 cm
Package 1 length	11.5 cm
Package 1 weight	191.0 g
Total lifecycle carbon footprint	5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.35621480152159
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.10161537551535739
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.003775226642231678
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.0036953706150874887
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.2275362119121969
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	4.692836986206463
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Halogen-free status	Halogen free product
Pvc free	Yes
Take-back	No
Warranty (in months)	18

Show all specifications
