Specifications
Design
Range of product
Thorsman
Product or component type
cavity fixing
Device application
board material
Colour tint
metal
Sustainable offer status
Green Premium product
Physical
Provided equipment
screw
Mounting support
board material
Mounting support
wall mounted
Quantity per set
set of 50
Sale per indivisible quantity
50
Environmental characteristic
fire resistance
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP111114EN
Circularity profile
N/A
Material
Material
screw: steel electroplated|cavity fixing: sheet metal electroplated
Others
Package 1 bare product quantity
1
Product name

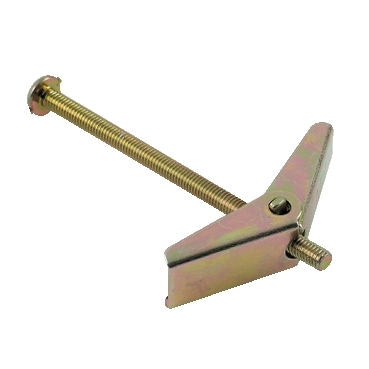

Thorsman TOG
Device short name
TOG
Thread type
M3
Screw diameter
3 mm
Screw length
50 mm
Drilling diameter
11 mm
Practical load capacity
pull-out load: 100 N for 13 mm plasterboard
Thickness
0...30 mm fixture
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.7 cm
Package 1 width
3.4 cm
Package 1 length
6 cm
Package 1 weight
4.7 g
