Thorsman nail plug with 72mm screw, TPH-10x67, set of 20

Thorsman nail plug with 72mm screw, TPH-10x67, set of 20

Item Number: IMT39082

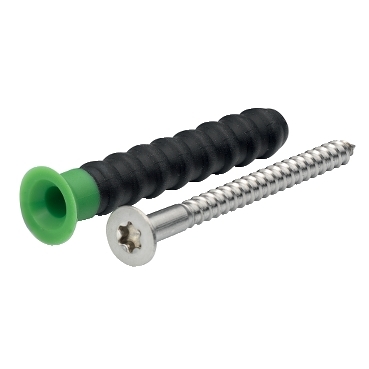

This Thorsman nail plug is green/black in colour. It comes with a screw. The dimension (L) 67 mm. It is made of acid-proof stainless steel making it resistant and durable. It is sold in set of 20.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product Thorsman
Product or component type nail plug
Colour tint green/black
Warranty 18 months

Physical

Provided equipment screw
Ambient air temperature for operation -20...60 °C
Length 67 mm
Quantity per set set of 20
Reach free of svhc Yes
Toxic heavy metal free Yes
Mercury free Yes
Rohs exemption information Yes
China rohs regulation Product out of China RoHS scope
Eu rohs directive Compliant

Material

Material
  • screw: acid-proof stainless steel
  • plug: PA + TPR

Others

Life cycle assessment data No
If one of the deliverables is not relevant please give the reason Accessories
Legacy weee scope Out
Package 1 bare product quantity 1
At least in Europe
Warranty duration(in months) bmecat 18
Package 4 bare product quantity 15360
Package 3 bare product quantity 320
Package 2 bare product quantity 320
Weee label No
Device short name TPH
Drilling diameter 10 mm
Minimum drilling depth 70 mm
Screw length 72 mm
Atmospheric-corrosivity category C5-M
Practical load capacity
  • pull-out load: 0.6 kN for low density concrete 500 and expanded clay 3 )
  • shear: 0.7 kN for low density concrete 500 and expanded clay 2.5 )
  • pull-out load: 0.8 kN for concrete C25 3 )
  • shear: 1 kN for concrete C25 2.5 )
Thickness 0...10 mm fixture
Diameter 10 mm
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 4.200 cm
Package 1 width 10.600 cm
Package 1 length 21.800 cm
Package 1 weight 17.100 g
Unit type of package 2 CAR
Number of units in package 2 320
Package 2 height 15.200 cm
Package 2 width 29.800 cm
Package 2 length 39.800 cm
Package 2 weight 5.802 kg
Unit type of package 3 CAR
Number of units in package 3 320
Package 3 height 15.200 cm
Package 3 width 29.800 cm
Package 3 length 39.800 cm
Package 3 weight 5.802 kg
Sustainable packaging No
Energy efficiency optimized False
Take-back No
Product contributes to saved and avoided emissions No
Removable battery N/A
Average percentage of recycled metal content 0 %
Packaging made with recycled cardboard No
Packaging without single use plastic No
China rohs label 1
End of life manual availability N/A
Take-back No
Warranty (in months) 18
