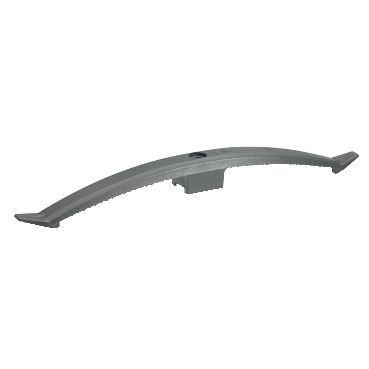

Thorsman, double cable wing, without nail plug, dark grey, DIY, 2 pack

Thorsman, double cable wing, without nail plug, dark grey, DIY, 2 pack

Item Number: IMT37489

Datasheet

Product Dimensions

Width icon

Width20 mm

Height icon

Height23 mm

Depth icon

Depth230 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

double cable wing

Device application

cable installation two sides|conduit installation two sides

Colour tint

dark grey

Sustainable offer status

Green Premium product

Physical

Provided equipment

without nail plug

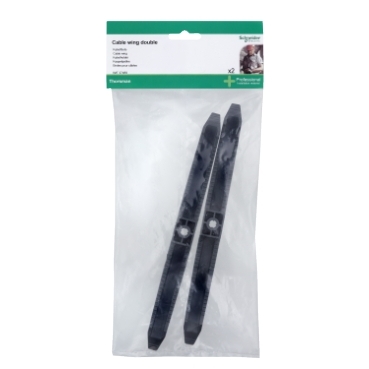

Type of packing

plastic bag and cardboard with eurohole

Quantity per set

set of 2

Type of installation

indoor/outdoor

Number of cables

6 x 0-12 mm: both side

Height

23 mm

Width

20 mm

Depth

230 mm

Ambient air temperature for operation

-20...60 °C

Environmental characteristic

withstand extreme temperature|high UV resistance

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP101027EN

Circularity profile

N/A

Material

Material

cable wing: PA (polyamide)

Others

Package 1 bare product quantity

1

Practical load capacity

30 N

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

32 cm

Package 1 width

2.5 cm

Package 1 length

15 cm

Package 1 weight

45 g
