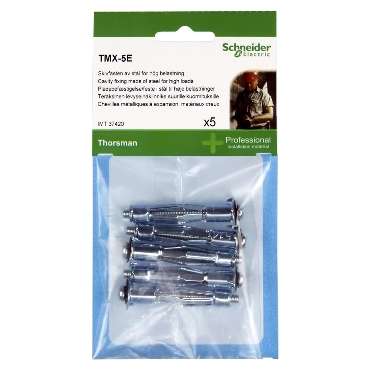

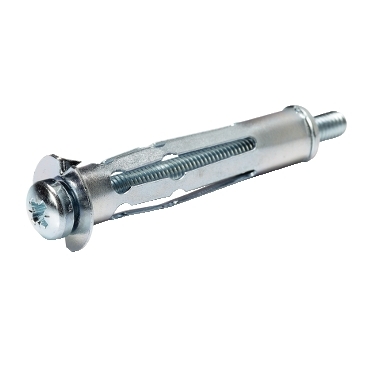

Thorsman installation material, cavity fixing, with threaded screw, TMX-5E, set of 5, DIY

Thorsman installation material, cavity fixing, with threaded screw, TMX-5E, set of 5, DIY

Item Number: IMT37420

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Sustainable offer status

Green Premium product

Physical

Provided equipment

threaded screw

Mounting support

high load installation in board material - thickness: 6-13 mm

Screwdriver shape

Philips

Quantity per set

set of 5

Net weight

0.0158 kg

Environmental characteristic

fire resistance

Type of packing

plastic bag and cardboard with eurohole

Ambient air temperature for operation

-40...80 °C

Length

62 mm

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111114EN

Circularity profile

N/A

Material

Material

screw: steel electroplated|cavity fixing: sheet metal electroplated

Others

Package 1 bare product quantity

1

Device short name

TMX

Thread type

M5

Screw diameter

5 mm

Screw length

57 mm

Shape of screw head

combi-head|cross slotted

Drilling diameter

10 mm

Practical load capacity

shear: 40 kg 2.5 )|pull-out load: 16 kg 3 )

Thickness

0...24 mm

Diameter

16 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.6 cm

Package 1 width

1.6 cm

Package 1 length

6.2 cm

Package 1 weight

16.0 g
