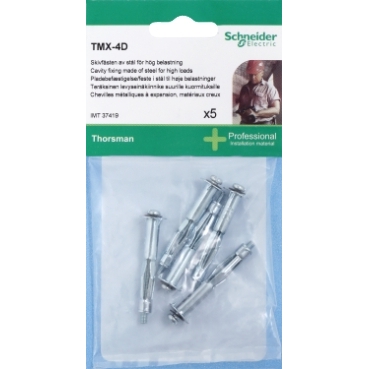

Thorsman, cavity fixing, with threaded screw, TMX-4D, set of 5, DIY

Thorsman, cavity fixing, with threaded screw, TMX-4D, set of 5, DIY

Item Number: IMT37419

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Physical

Provided equipment

threaded screw

Mounting support

high load installation in board material - thickness: 16-26 mm

Screwdriver shape

Philips

Quantity per set

set of 5

Net weight

0.0093 kg

Environmental characteristic

fire resistance

Type of packing

plastic bag and cardboard with eurohole

Ambient air temperature for operation

-40...80 °C

Length

62 mm

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111114EN

Circularity profile

N/A

Material

Material

  • screw: steel electroplated
  • cavity fixing: sheet metal electroplated

Others

Package 1 bare product quantity

1

Device short name

TMX

Thread type

M4

Screw diameter

4 mm

Screw length

50 mm

Shape of screw head

  • combi-head
  • cross slotted

Drilling diameter

8 mm

Practical load capacity

  • shear: 40 kg 2.5 )
  • pull-out load: 16 kg 3 )

Thickness

0...18 mm

Diameter

14 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.4 cm

Package 1 width

1.4 cm

Package 1 length

6.2 cm

Package 1 weight

9.0 g
