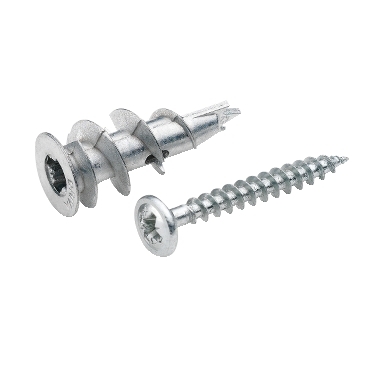

Thorsman installation material, cavity fixing, with screw, TPD-SK, set of 5, DIY

Home ProductsElectrical AccessoriesThorsmancavity fixing, with screw, TPD-SK, set of 5, DIY

Thorsman installation material, cavity fixing, with screw, TPD-SK, set of 5, DIY

Item Number: IMT37414

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Sustainable offer status

Green Premium product

Physical

Provided equipment

screw

Mounting support

lightweight installation in board material - thickness: 9-9 mm

Screwdriver shape

pozidriv No 2

Quantity per set

set of 5

Net weight

0.0089 kg

Environmental characteristic

fire resistance

Type of packing

plastic bag and cardboard with eurohole

Ambient air temperature for operation

-40...80 °C

Length

37 mm

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111114EN

Circularity profile

N/A

Material

Material

screw: steel electro-galvanized|cavity fixing: zinc

Others

Package 1 bare product quantity

1

Device short name

TPD

Screw diameter

4.5 mm

Screw length

35 mm

Size of screw head

8 mm

Shape of screw head

cross slotted

Practical load capacity

shear: 27 kg for 13 mm board 2.5 )|pull-out load: 8 kg for 13 mm board 3 )

Thickness

0...12 mm fixture

Diameter

13 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

13.5 cm

Package 1 width

1.5 cm

Package 1 length

9.3 cm

Package 1 weight

29.0 g
Show all specifications
