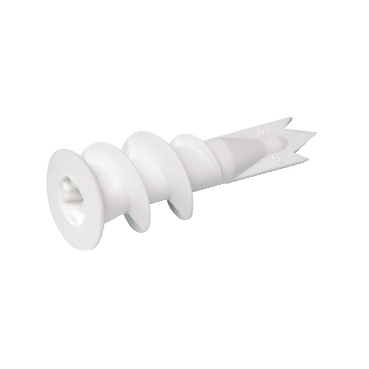

Thorsman Cavity Fixing TPD-VS, without screw, set of 100

Home ProductsElectrical AccessoriesThorsmanCavity Fixing

Thorsman Cavity Fixing TPD-VS, without screw, set of 100

Item Number: 1220010

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Device application

9-9 mm lightweight installation in plasterboard

Colour tint

white

Warranty

18 months

Physical

Provided equipment

without screw

Quantity per set

set of 100

Mounting support

wall mounted

Length

37 mm

Net weight

0.177 kg

Ambient air temperature for operation

-40...80 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111114EN

Circularity profile

N/A

Material

Material

  • PA (polyamide)
  • glass fibre reinforced

Others

Package 1 bare product quantity

1

Device short name

TPD-VS

Practical load capacity

  • 0.19 kN shear 13 mm board
  • 0.5 kN pull-out load 13 mm board

Thickness

0...12 mm fixture

Diameter

13 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.000 cm

Package 1 width

1.400 cm

Package 1 length

3.700 cm

Package 1 weight

1.200 g

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Optimized energy efficiency

False

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications
