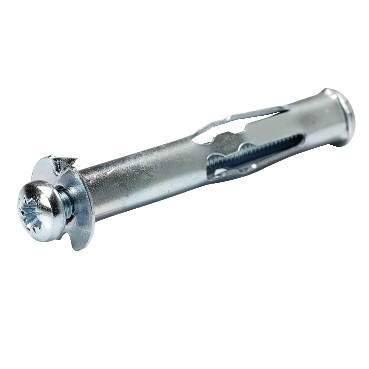

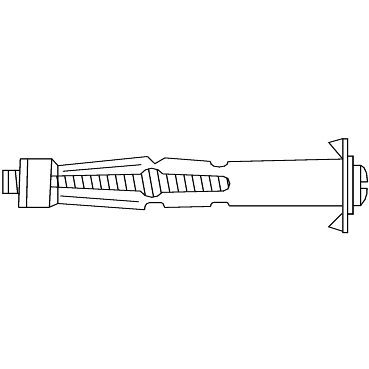

Thorsman, Cavity Fixing, TMX-8xM4, with threaded screw, set of 50

Home ProductsElectrical AccessoriesThorsmanCavity Fixing

Thorsman, Cavity Fixing, TMX-8xM4, with threaded screw, set of 50

Item Number: 1260066

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Device application

16-26 mm high load installation in board material

Colour tint

metal|grey

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Provided equipment

threaded screw

Mounting support

high load installation in board material - thickness: 16-26 mm

Mounting support

wall mounted

Screwdriver shape

Philips

Quantity per set

set of 50

Net weight

0.0093 kg

Environmental characteristic

fire resistance

Ambient air temperature for operation

-40...80 °C

Length

62 mm

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP101027EN

Circularity profile

N/A

Material

Material

screw: steel electroplated|cavity fixing: sheet metal electroplated

Others

Package 1 bare product quantity

1

Device short name

TMX

Thread type

M4

Screw diameter

4 mm

Screw length

50 mm

Shape of screw head

cross slotted|combi-head

Drilling diameter

8 mm

Practical load capacity

shear: 400 N 2.5 )|pull-out load: 160 N 3 )

Thickness

0...18 mm fixture

Diameter

14 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.2 cm

Package 1 width

0.8 cm

Package 1 length

5.3 cm

Package 1 weight

8 g
