Home ProductsElectrical AccessoriesMurevaWeatherproof enclosure for modular device

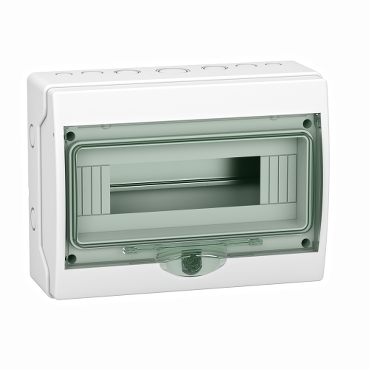

Mureva Enclosure Weatherproof enclosure for modular device 1x12 modules, 7 pre-cutouts, without terminal block

Item Number: 13979

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width267 mm

Height200 mm

Depth112 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3303430139799	-

Specifications

Design

Range	Mureva
Product or component type	weatherproof enclosure
Colour	door: transparent green enclosure: light grey (RAL 7035)
Market segment	residential small commercial
Warranty	18 months

Physical

Electrical insulation class	double insulation class II
Provided equipment	1 marking kit
[in] rated current	63 A
Width	267 mm
Height	200 mm
Depth	112 mm
Standards	IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1
Ip degree of protection	IP65 conforming to IEC 60529
Ik degree of protection	IK09 conforming to EN 50102
Environmental characteristic	UV resistant: class 3 conforming to ISO 4582:2010 ultraviolet degradation test conforming to ISO 4892-2:2013
Ambient air temperature for operation	-25...60 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2301024EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant

Others

Certification number	DC-E-S26-060.2 - IRAM
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	4
Package 3 bare product quantity	96
Average percentage of recycled plastic content	24 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Product name	Mureva Enclosure
Enclosure type	mini enclosure for modular device
Mounting plate description	slotted
Enclosure mounting	surface
9 mm pitches	24
Number of 18 mm modules per row	12
Total number of 18 mm modules	12
Number of horizontal rows	1
Type of front cover	transparent
Power dissipation in w	19 W
Type of rail	DIN
Number of pre-cutouts pg iso	7
Locking options description	optional keylock
Enclosure material	self-extinguishing polymer
Internal depth	56 mm
Fire resistance	650 °C conforming to IEC 60695-2-1
Overvoltage category	II
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.400 cm
Package 1 width	20.000 cm
Package 1 length	26.600 cm
Package 1 weight	810.000 g
Unit type of package 2	BB1
Number of units in package 2	4
Package 2 height	22.000 cm
Package 2 width	34.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.500 kg
Unit type of package 3	P12
Number of units in package 3	96
Package 3 height	80.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	99.480 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.273027332
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.10271646
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.056235728
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.8150505
Carbon footprint of the end-of-life phase [c1 to c4]	0.8 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free plastic parts product
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	5.247030019
Average percentage of recycled plastic content	24 %
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	5036b720-908f-495f-9f9e-e215274e05b0
China rohs label	1
Halogen-free status	Halogen free plastic parts product
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Technical Drawing
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Mureva Mini Enclosure 12 modules - 3D CAD

VERSION

1.0

DATE

02 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 3.4 MB

ZIP

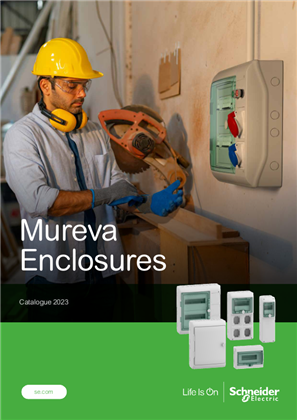

Mureva Enclosures catalog

VERSION

2.0

DATE

14 Nov 2024

REVISION

2.0

DOWNLOAD (ZIP) 2.8 MB

ZIP

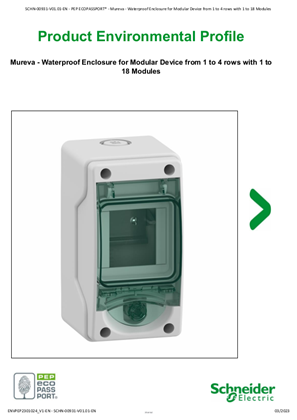

Mureva - Waterproof Enclosure for Modular Device from 1 to 4 rows with 1 to 18 Modules - Product Environmental Profile

VERSION

1.0

DATE

06 Apr 2026

REVISION

1.0

DOWNLOAD (ZIP) 381.4 KB

ZIP

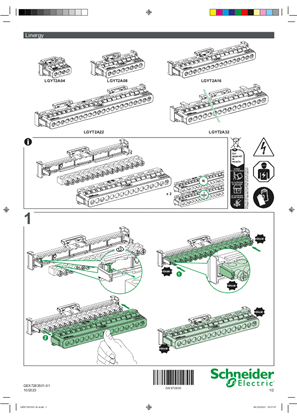

Earth and Neutral Terminal Screw insulated terminal block PrismaSeT XS Installation sheet

VERSION

2.0

DATE

23 Dec 2025

REVISION

2.0

DOWNLOAD (ZIP) 2.3 MB

ZIP

Mureva Mini Enclosure Installation sheet

VERSION

2.0

DATE

12 Nov 2025

REVISION

2.0

DOWNLOAD (ZIP) 2.8 MB

ZIP

Mini enclosure for switchgear 1 row 12 modules Technical drawings

VERSION

1.0

DATE

23 Apr 2021

REVISION

1.0

DOWNLOAD (ZIP) 67.3 KB

ZIP

Mini enclosure for switchgear 1 row 12 modules Technical drawings

VERSION

1.0

DATE

23 Apr 2021

REVISION

1.0

DOWNLOAD (ZIP) 64.7 KB

ZIP

Mini enclosure for switchgear 1 row 12 modules Technical drawings

VERSION

1.0

DATE

23 Apr 2021

REVISION

1.0

DOWNLOAD (ZIP) 26.9 KB

ZIP

Mini enclosure for switchgear 1 row 12 modules Dimensions drawing

VERSION

1.0

DATE

13 Dec 2020

REVISION

1.0

DOWNLOAD (ZIP) 67.3 KB

ZIP

Mini enclosure for switchgear 1 row 12 modules Dimensions drawing

VERSION

1.0

DATE

13 Dec 2020

REVISION

1.0

DOWNLOAD (ZIP) 64.7 KB

ZIP

Mini enclosure for switchgear 1 row 12 modules Dimensions drawing

VERSION

1.0

DATE

13 Dec 2020

REVISION

1.0

DOWNLOAD (ZIP) 26.9 KB

ZIP

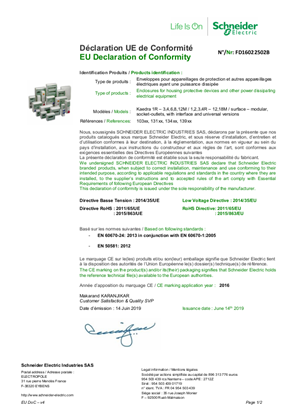

EU Declaration of Conformity Schneider Electric

VERSION

1.0

DATE

17 Mar 2025

REVISION

1.0

DOWNLOAD (ZIP) 513.1 KB

ZIP

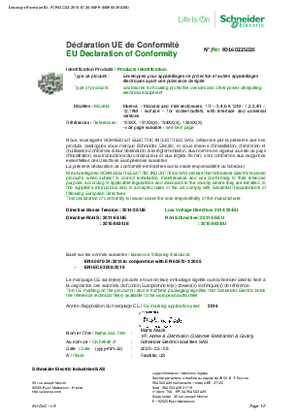

EU Declaration of Conformity Schneider Electric
