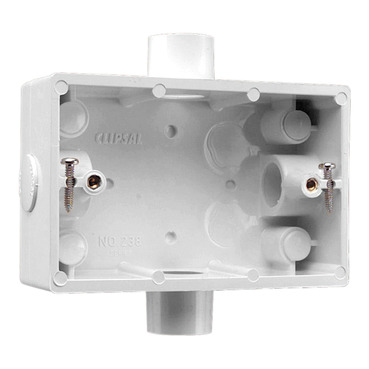

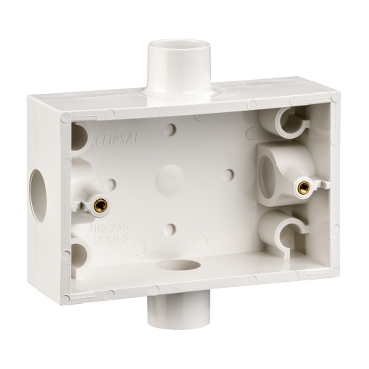

Clipsal - Mounting Accessories Mounting Box 1 Gang, 4 Way, 20mm Entry | White Electric
Item Number: 238B-WE
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Physical
Number of gangs
1 gang
Device mounting
surface
Length
115 mm
Depth
38 mm
Reach free of svhc
Yes
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant
Eu rohs directive
Compliant
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
plastic
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Warranty duration(in months) bmecat
18
Weee label
N/A
Shape
rectangular
Cable entry number
4
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.7 cm
Package 1 width
11.0 cm
Package 1 length
11.5 cm
Package 1 weight
142.0 g
Sustainable packaging
No
China rohs label
1
End of life manual availability
N/A
Warranty (in months)
18
